Description
Colour
Red
Black
White
Beige

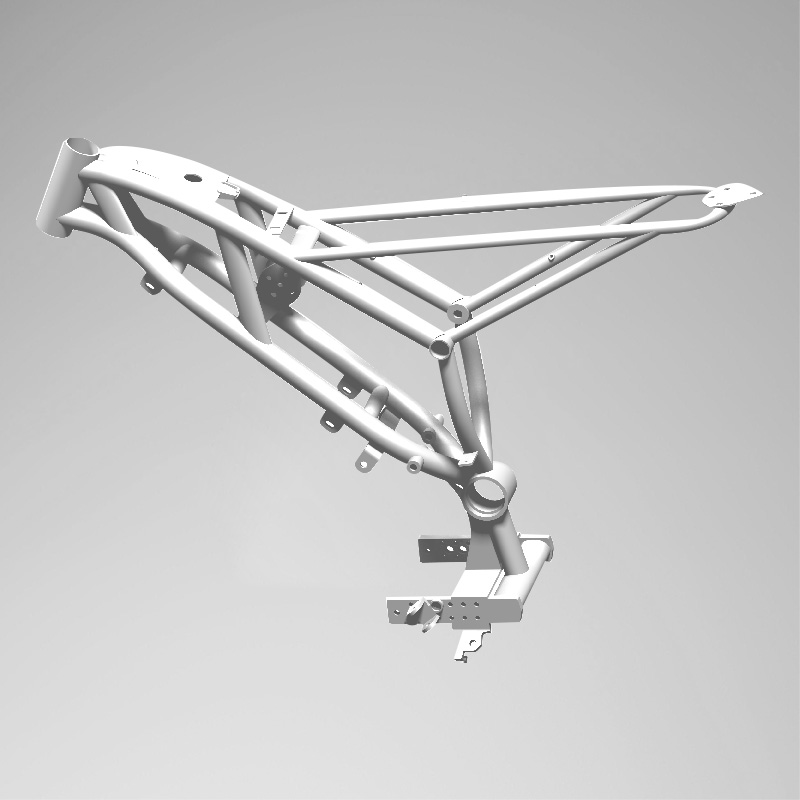

Frame - Lightweight
The M21 electric motorcycle frame is patented. Using Chromy molly to maximize the ratio of strength to weight, the M21 employs a mature proprietary process to create the frame structure, ensuring the highest quality and durability while providing optimal center stability.

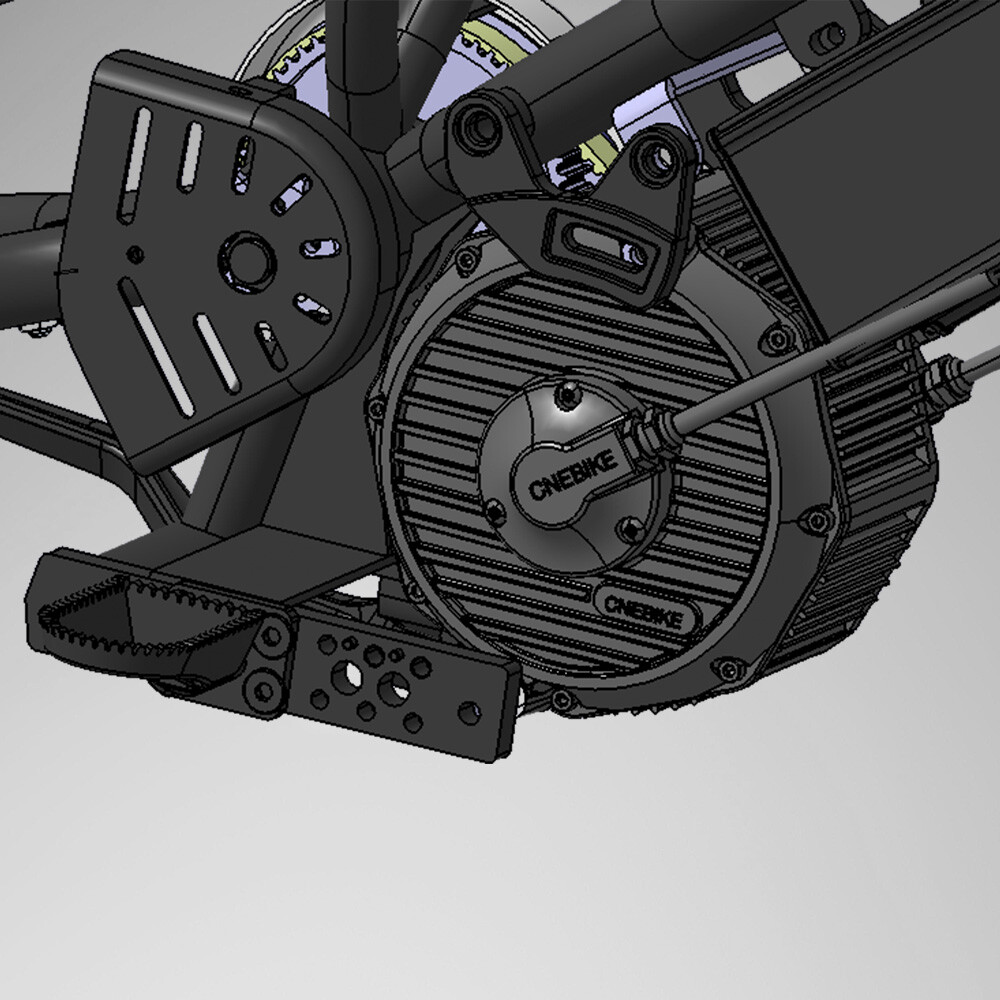

Motor
21000W
Peak Power
480 N.m
Max. Torque
72V
Rated Voltage
The motor utilizes SOTION FW02 with a rated power of 12KW and a maximum power of 21KW.

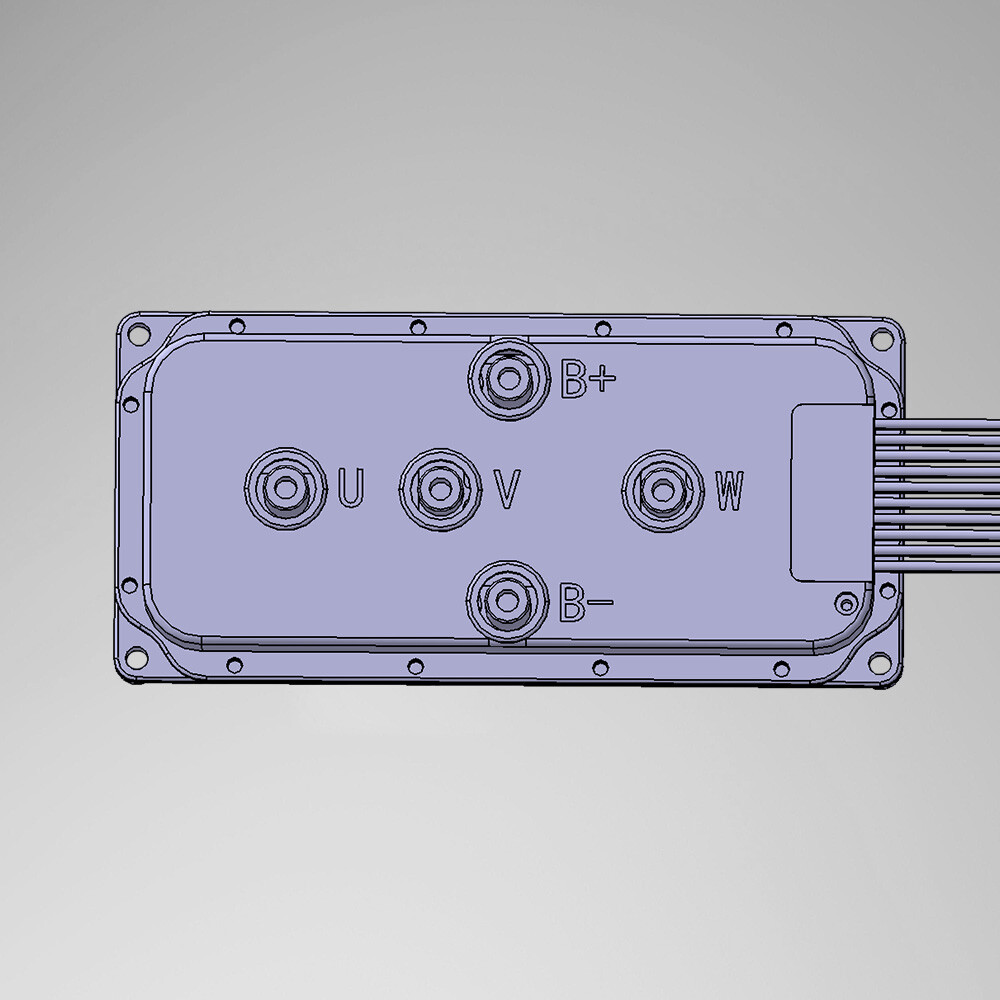

Controller
The mainboard uses a 6-layer board with gold-plating technology, copper thickness of 20Z, CPU employing the high-performance processor STM32H7, continuous bus current of 450A, voltage range of 40-90V.

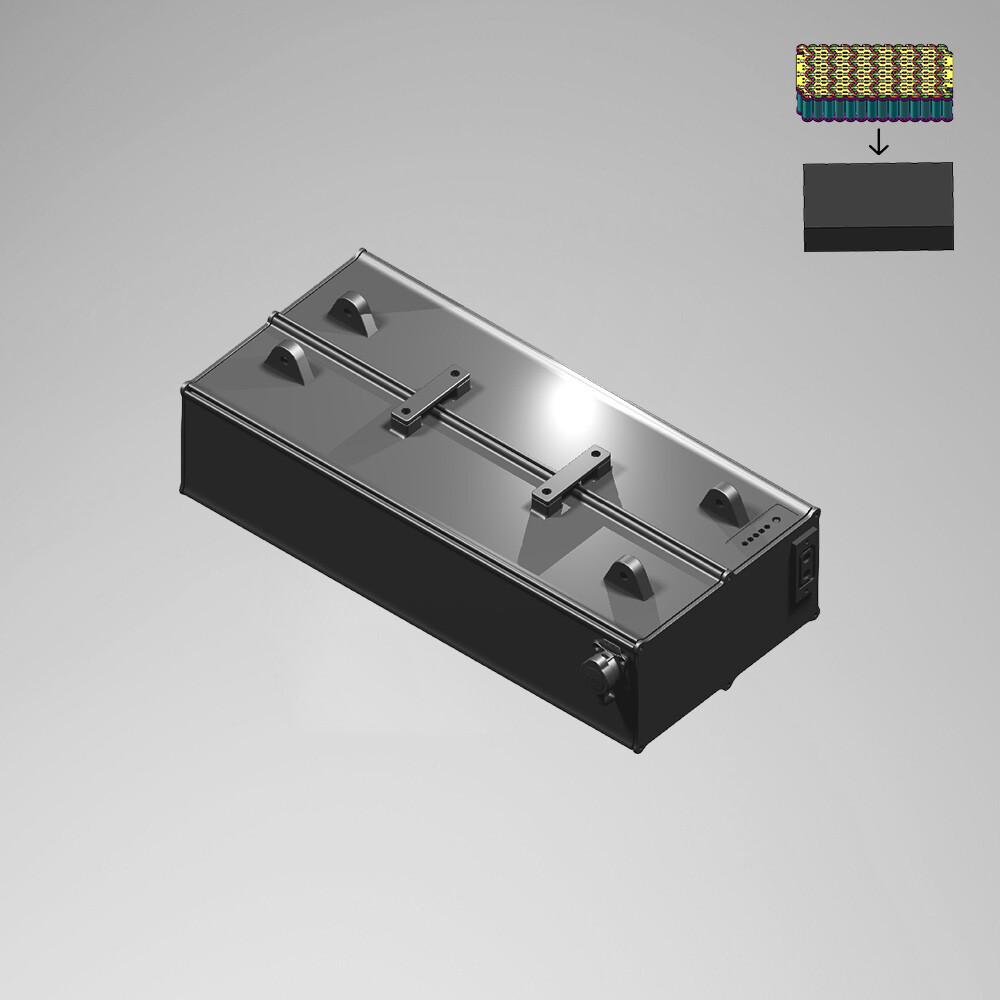

Battery
The shell of battery is processed using high-quality 4mm thick aluminum alloy material, internally filled with gel to promote uniform heat dissipation, effectively preventing self-ignition, and achieving IP67 waterproof and shockproof ratings. Equipped with a dual safety protection Battery Management System (BMS) and a fuse module to prevent overcharging, over-discharging, overloading, and short circuits. Utilizing top-tier Samsung 50S premium 21700 battery cells, the 72V 30Ah battery pack has a total capacity of 2160Wh, providing a range of up to 175 miles in pedal-assist mode and over 70 miles in throttle-only mode. With a full charge in 4 hours, and proper maintenance, the battery life can extend up to 5 years.
The battery comes with a one-year warranty.

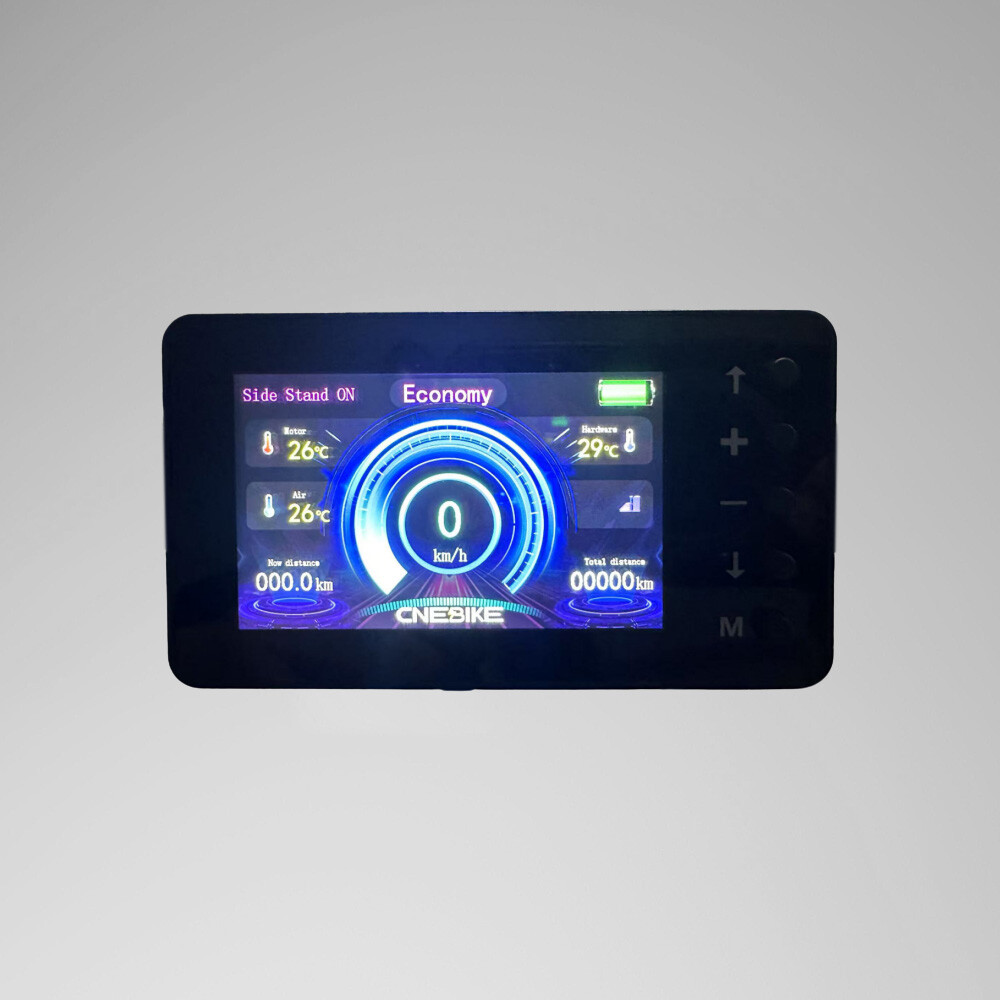

Display
3.1-inch TFT full-function display that allows for secondary programming of the controller.

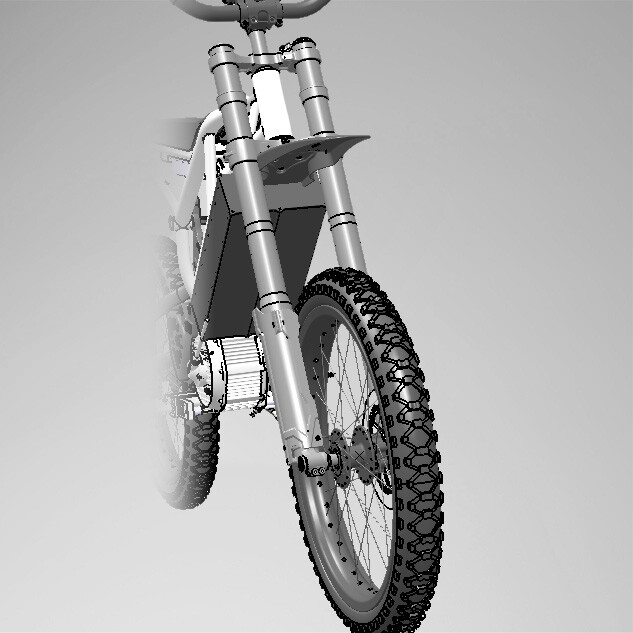

Front Fork
The M21 is equipped with the KKE dual shoulder inverted front fork suspension system. These high-end front forks utilize AL 7075 tubing, sturdy rubber seals, a 20mm through-axle design, and large plastic fork guards.
Designed specifically for heavy-duty electric bicycles, these front forks provide 200mm of travel through a coil and air hydraulic spring system. We have finely tuned both rebound and compression to provide the perfect all-around riding experience on your M21. The click adjuster also allows you to customize settings according to your preferences.

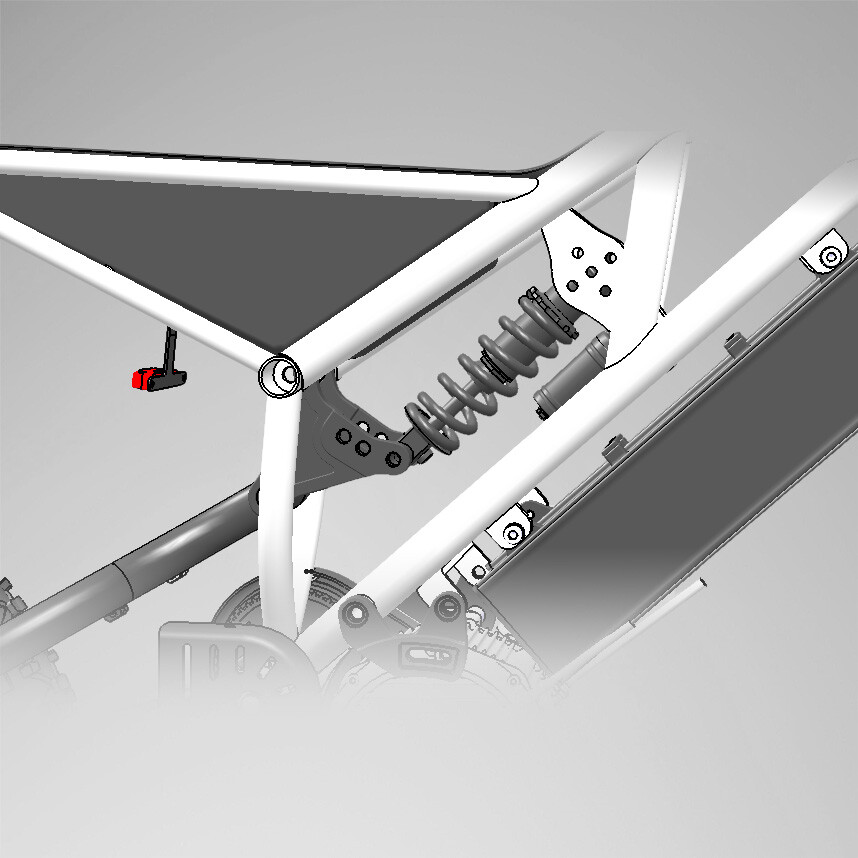

Rear Shock
The motorcycle is equipped with a center link rear suspension system. The durable KKE MK-AR shock absorber features a nitrogen-filled oil damping internal floating piston, a hard chrome-plated 12mm damping rod, and integrated temperature compensation. The shock absorber has a spring force value of 550 pounds, providing up to 45mm of travel.
Although we have fine-tuned this suspension system to give CNCYC perfect handling performance, easy steering spring preload and rebound damping adjusters allow you to customize settings according to your preferences.

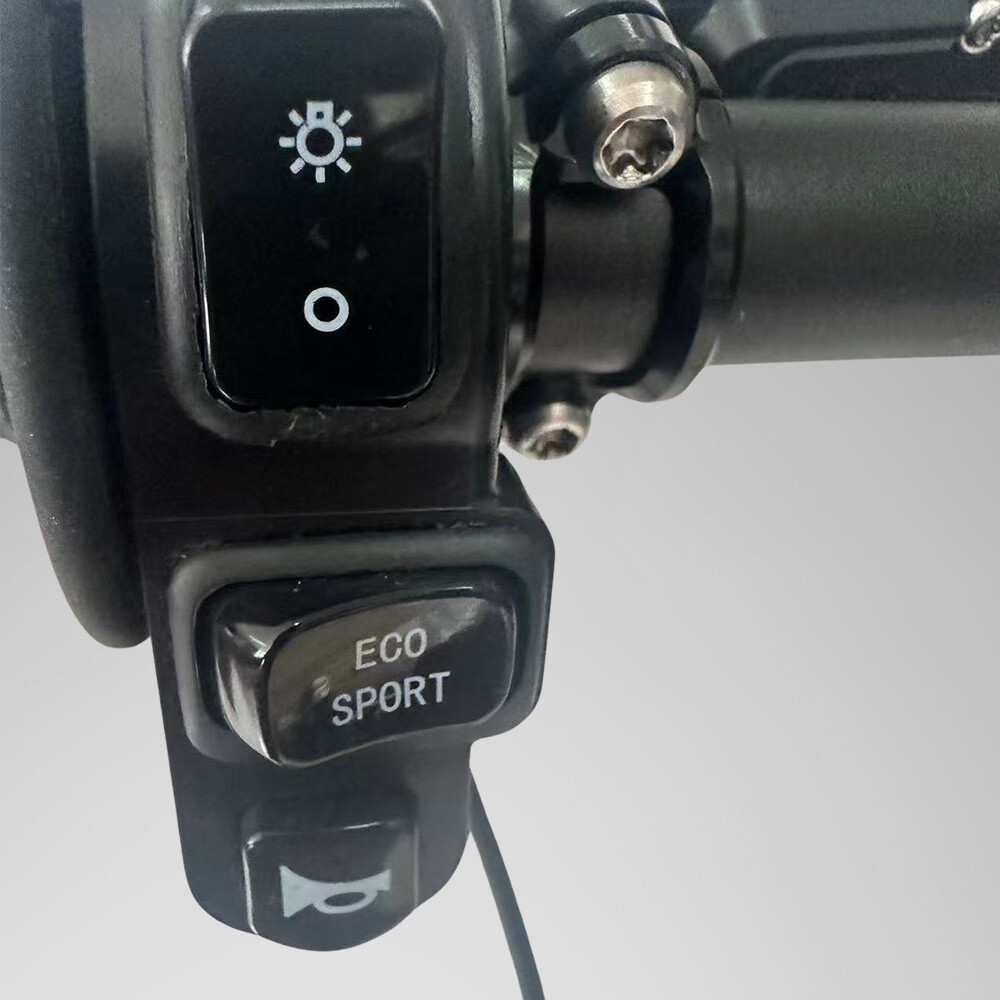

Light Switch
The main controller serves as the central command center for the turn signals, headlights, and horn of the M21 motorcycle. It efficiently manages the activation and deactivation of these important functions.

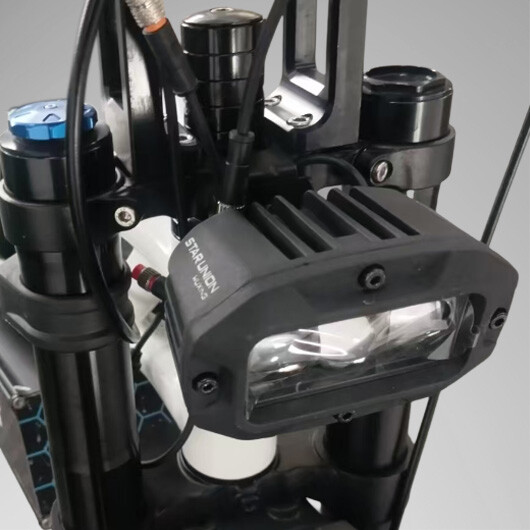

Front Light
Equipped with a LED headlight. These 3000LM variable voltage white lights provide a wide and deep view even in the darkest environments. Their durable waterproof housing is protected by a highly heat-conductive alloy cover to ensure ample heat dissipation.

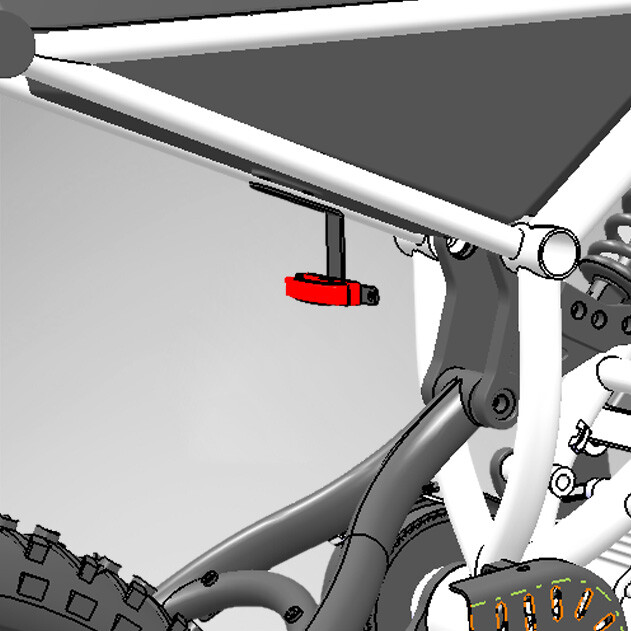

Rear Light
The taillight is composed of a combination of LED light strips, featuring both brake light and nighttime running light functions.

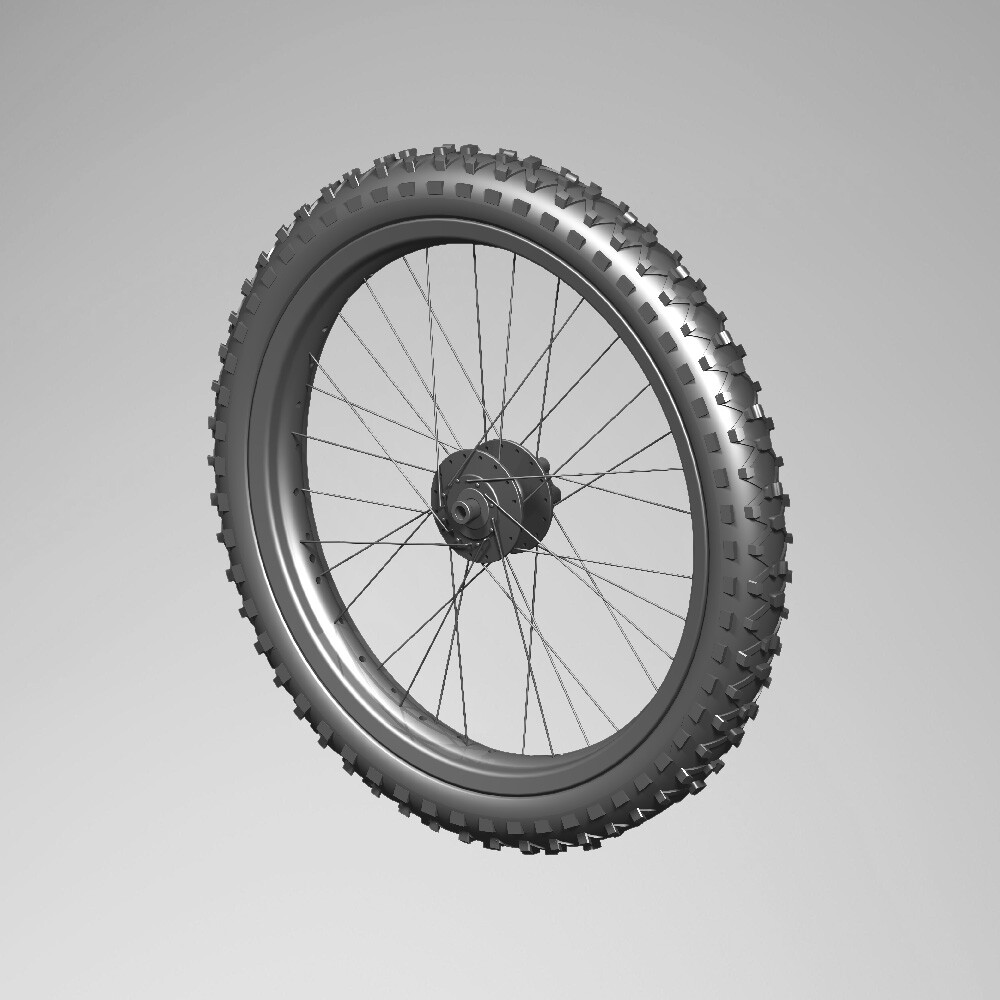

Tires
Utilizing CTS tires specifically designed for off-road performance, with specifications of 70/100-19 for the front and 80/100-19 for the rear, these tires combine the best performance from multiple fields. They offer increased stability and impact resistance, along with a larger contact patch that enhances traction on soft terrain, providing a more comfortable riding experience.
The block-patterned tire surface provides better grip on all paths, from smooth asphalt roads to soft gravel. With a durable tire body and puncture-resistant layer design, they protect against wear and damage from sharp debris, preventing punctures and maintaining smooth rolling.

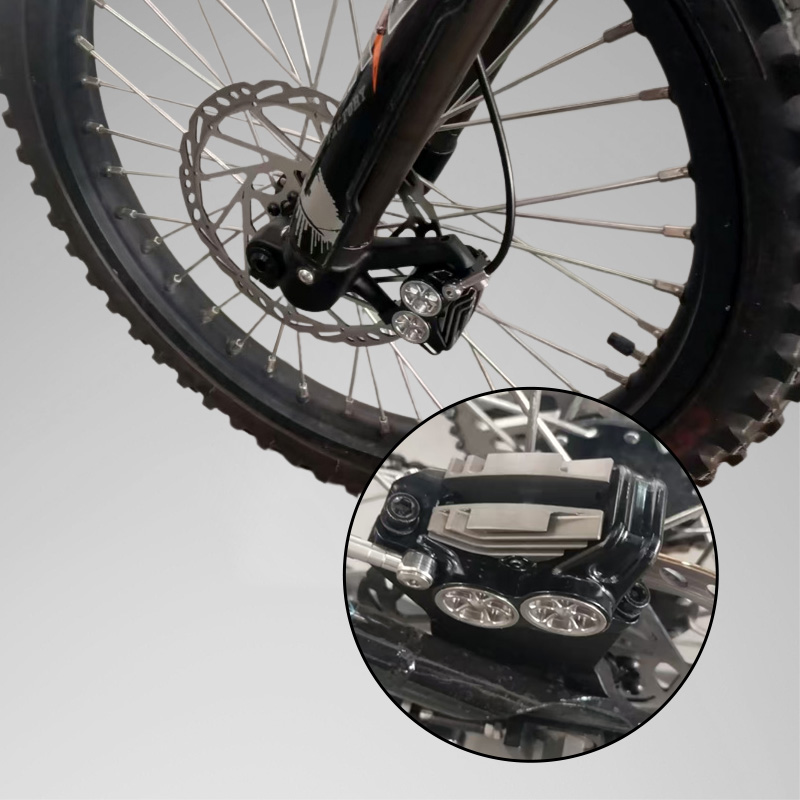

Brake System
The M21 COMES WTIH LEWIS EB20-21 4-piston hydraulic disc brakes on both the front and rear, providing robust braking performance for Electric motorcycles, By using a 203mm brake disc on the front wheel and a 203mm brake disc on the rear wheel, perfect balance and strong braking power are provided where needed.
The forged aluminum body of the LEWIS four-piston calipers, along with rigid hose casings and non-corrosive mineral oil, help prevent overheating of the brake pads and maintain reliable braking performance when you need it most.
With a built-in power-off sensor, pulling the modular brake lever not only cuts off power to the motor but also warns nearby drivers by activating a high-visibility brake light.

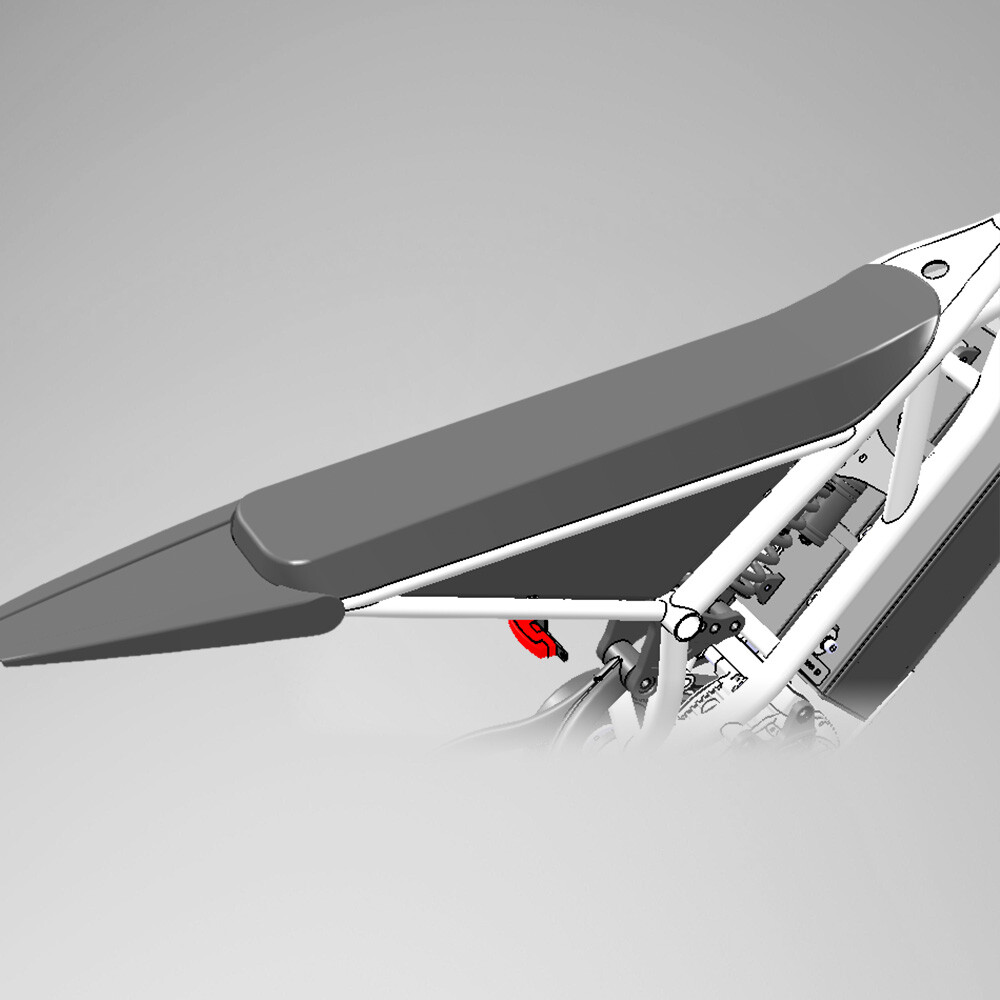

Seat
Utilizing durable high-elastic waterproof leather, carefully designed with consideration for ergonomics, allowing riders to adjust the seat height according to personal preferences for customized comfort and a luxurious riding experience.
*The seat height is adjustable to accommodate the needs of different riders.

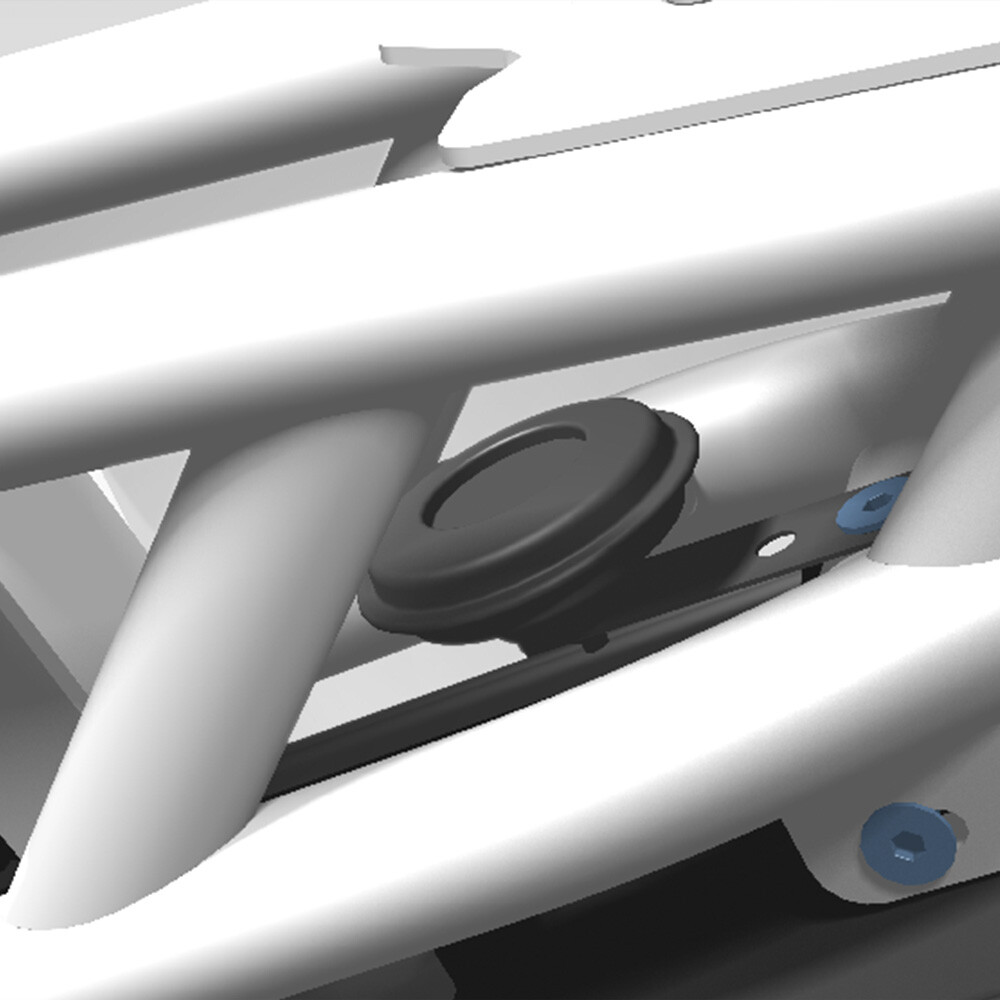

Horn
12V1.5A 100dB, clear horn sound to alert nearby drivers and pedestrians.

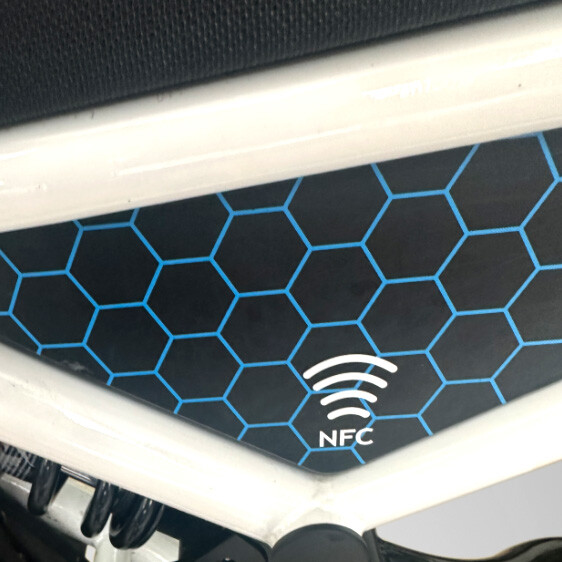

power on
Using NFC to power on.
Get in touch!
Whether you are an individual or a dealer, please do not hesitate to contact us if you need information or support of any kind.

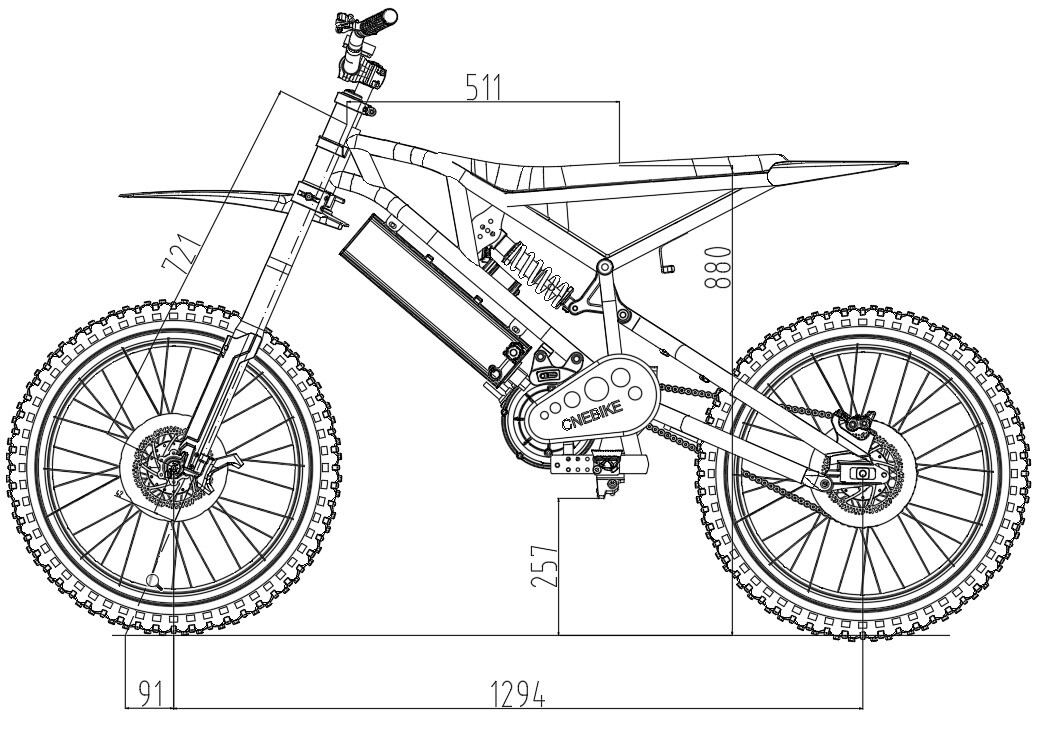

Parameter
