Description
250nm of torque.

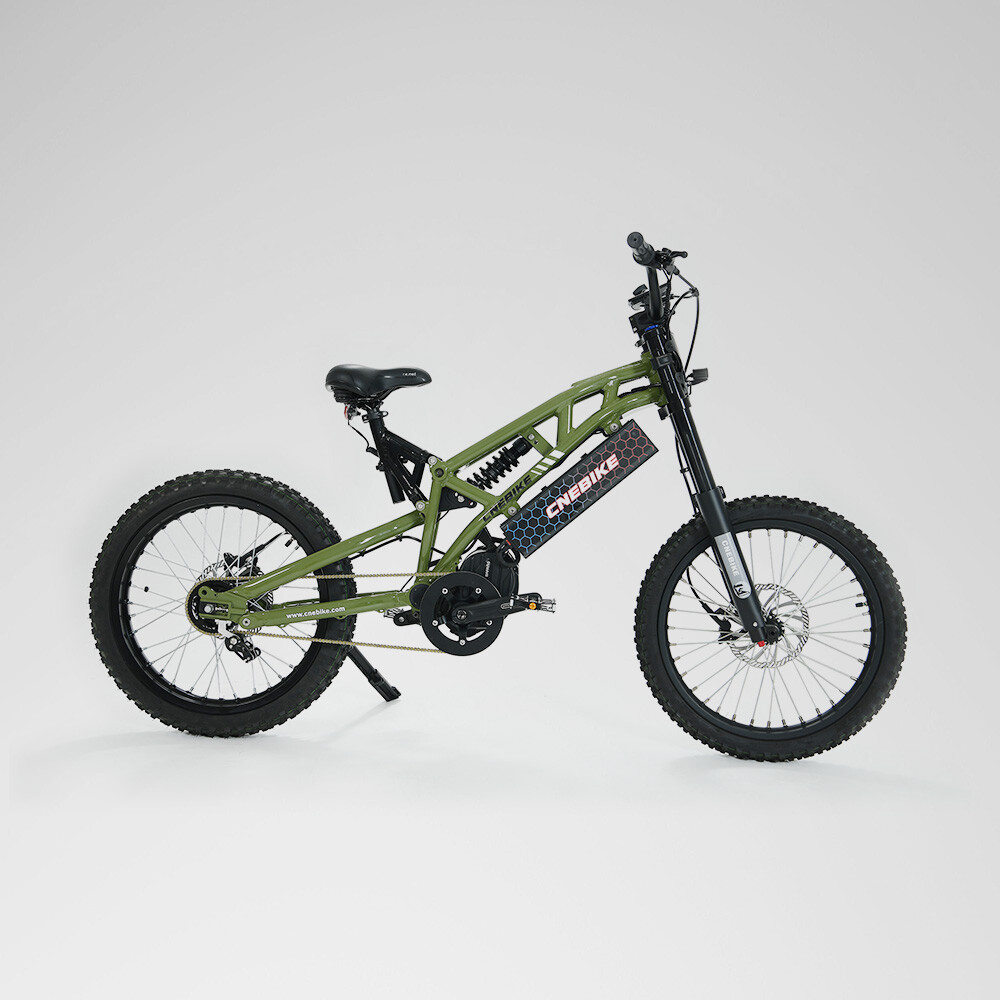

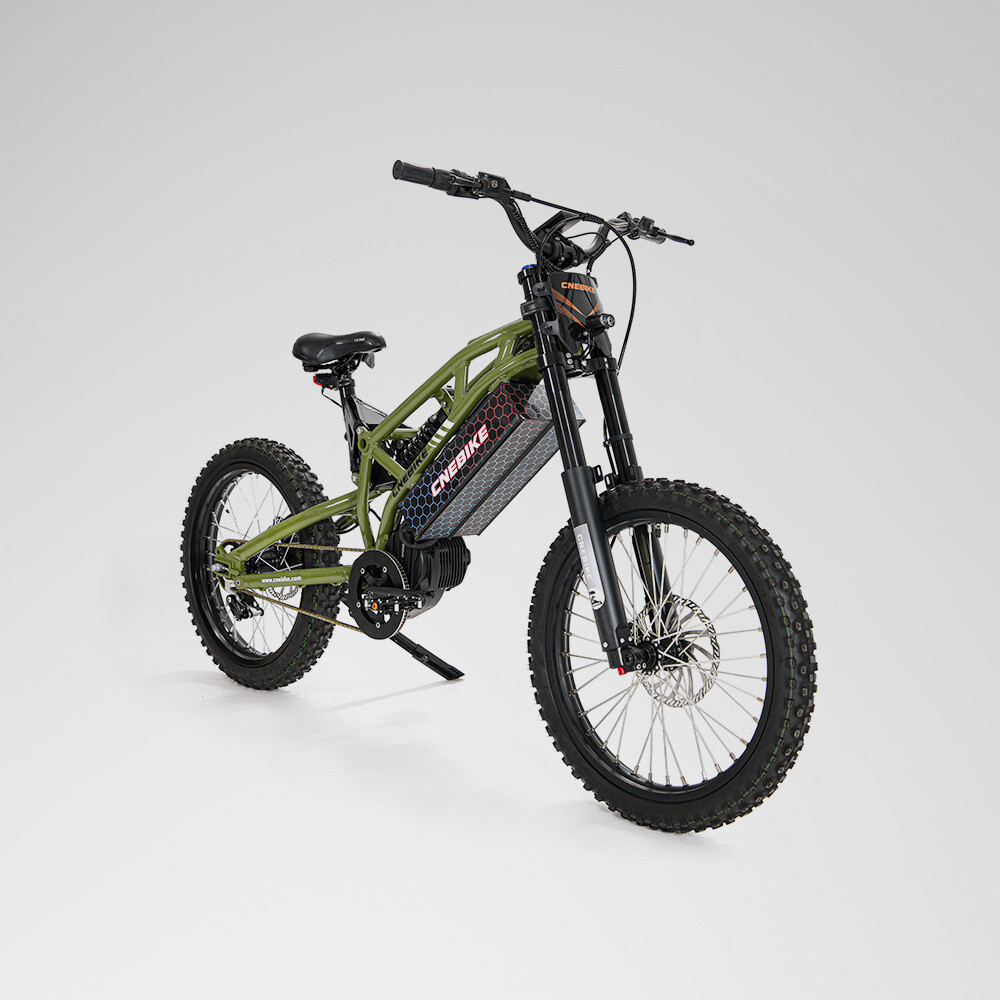

M1.5 Equipped with the new Bafang m630 middrive motor. The Beast is in a league of its own.
1 Nm is equivalent to 0.738 lb/ft. A small car typically has around 100 lb/ft of torque. The Beast has 250nm of torque equivalent to 184 lb/ft of torque.
Paired with the Bafang 5 speed internally geared hub. The Beast has a bulletproof single speed drivetrain with a top end speed of 30 mph.
Colour
Green
Black
Red

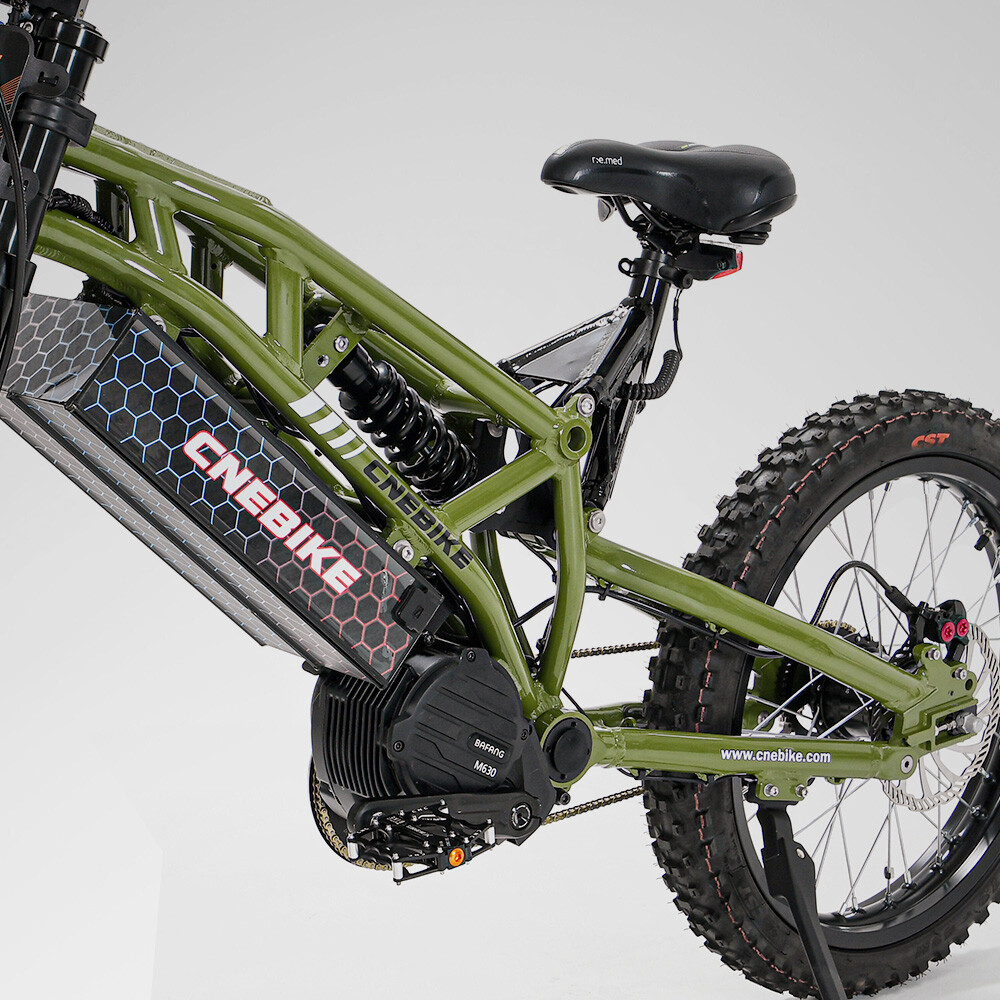

Frame-Lightweight
The M1.5The M1.5 electric motorcycle frame is patented, utilizing 6061 T6 aluminum alloy to maximize the strength-to-weight ratio. The CNM630 employs a proven, proprietary process to create the frame structure, ensuring the highest quality and durability while providing optimal central stability.

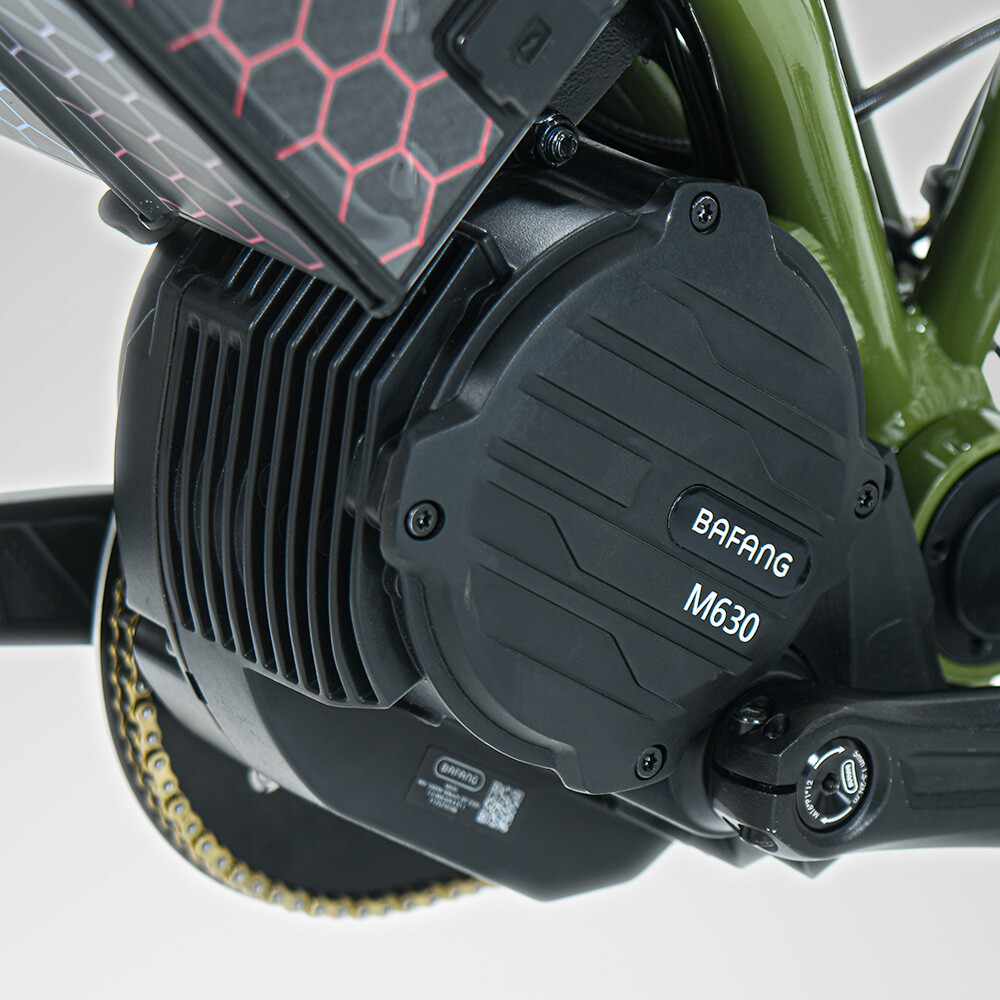

Motor
The M1.5 electric motorcycle is powered by the BAFANG M630 mid-drive motor, with a rated power of up to 1500 watts and a torque of 250 Nm.

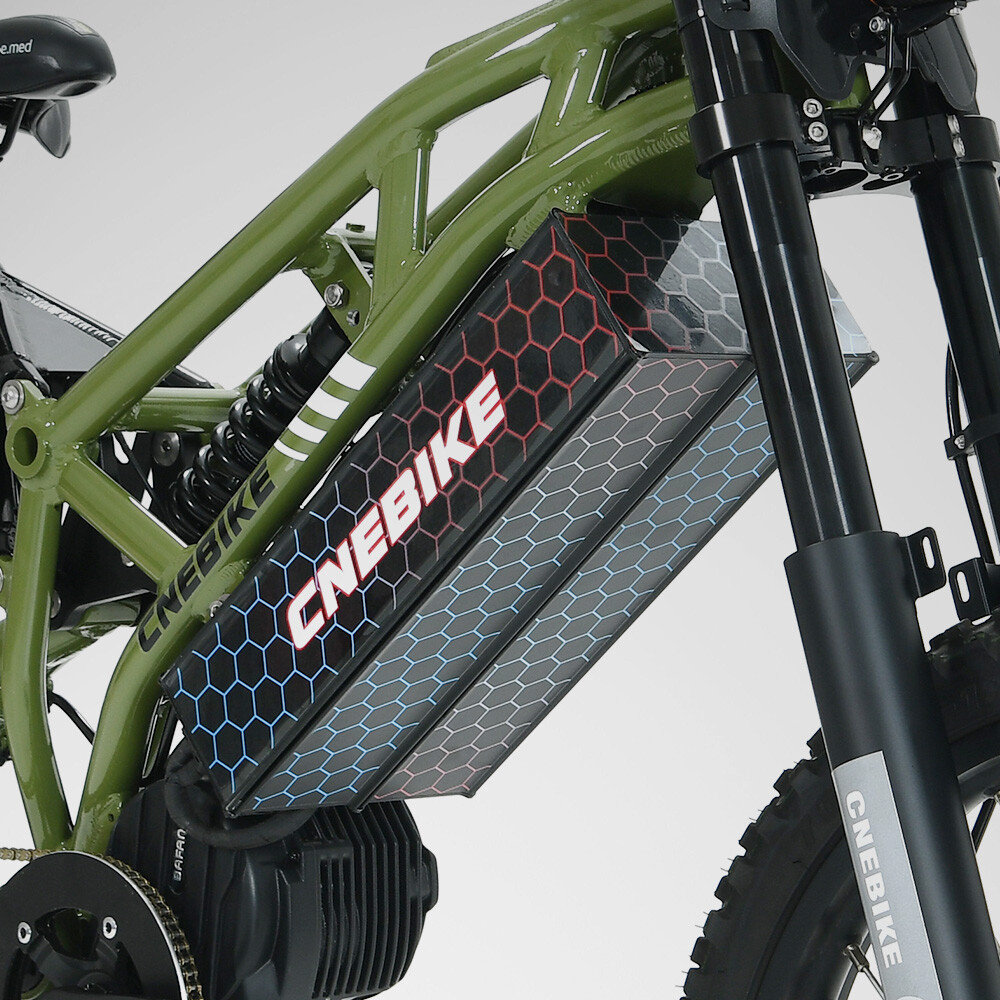

Battery
The casing of battery is manufactured from 4mm thick high-quality aluminum alloy material. besides, it uses a full potting process inside for better and more even heat dissipation, which can prevent spontaneous combustion, is waterproof, and shockproof. The waterproof rating reaches IP67. Equipped with a dual safety protection battery management system (BMS) and a fuse module to prevent overcharging, over-discharging, overloading, and short circuits. Furthermore, it uses the best Samsung 50GB high-quality 21700 battery cells. The 52V 40Ah battery pack has a total capacity of 2080Wh and can provide a range of up to 175 miles in pedal-assist mode and over 70 miles in throttle-only mode. It fully charges in 4 hours, if take a well-maintained battery can last up to 5 years.
The battery comes with a one-year warranty.

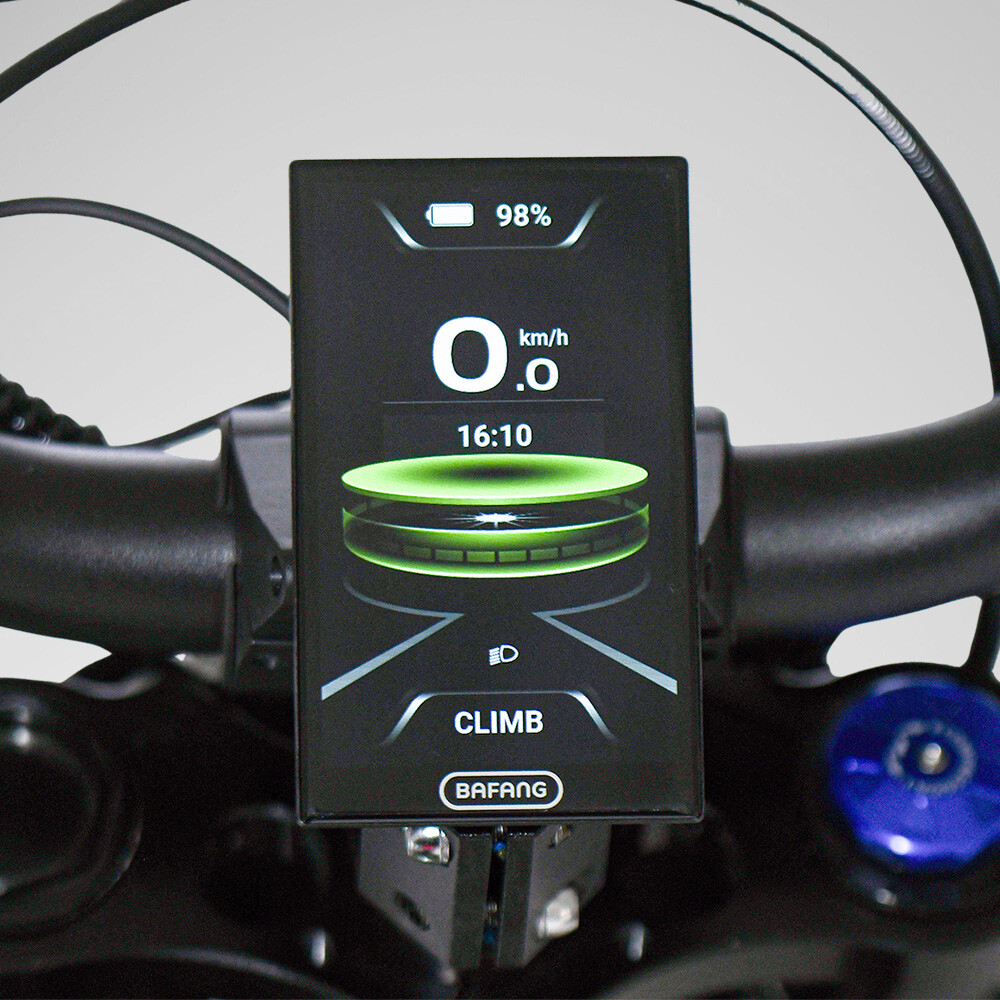

Display
Smart LCD display allows you to have full control this M1.5 electric bicycle . The background color of LCD display provides highly visible date whatever day or night . The display has a 3.5-inch color TFT screen with a clock function.
Designed for all weather conditions, with IP65 waterproof performance, and equipped with a micro USB port.

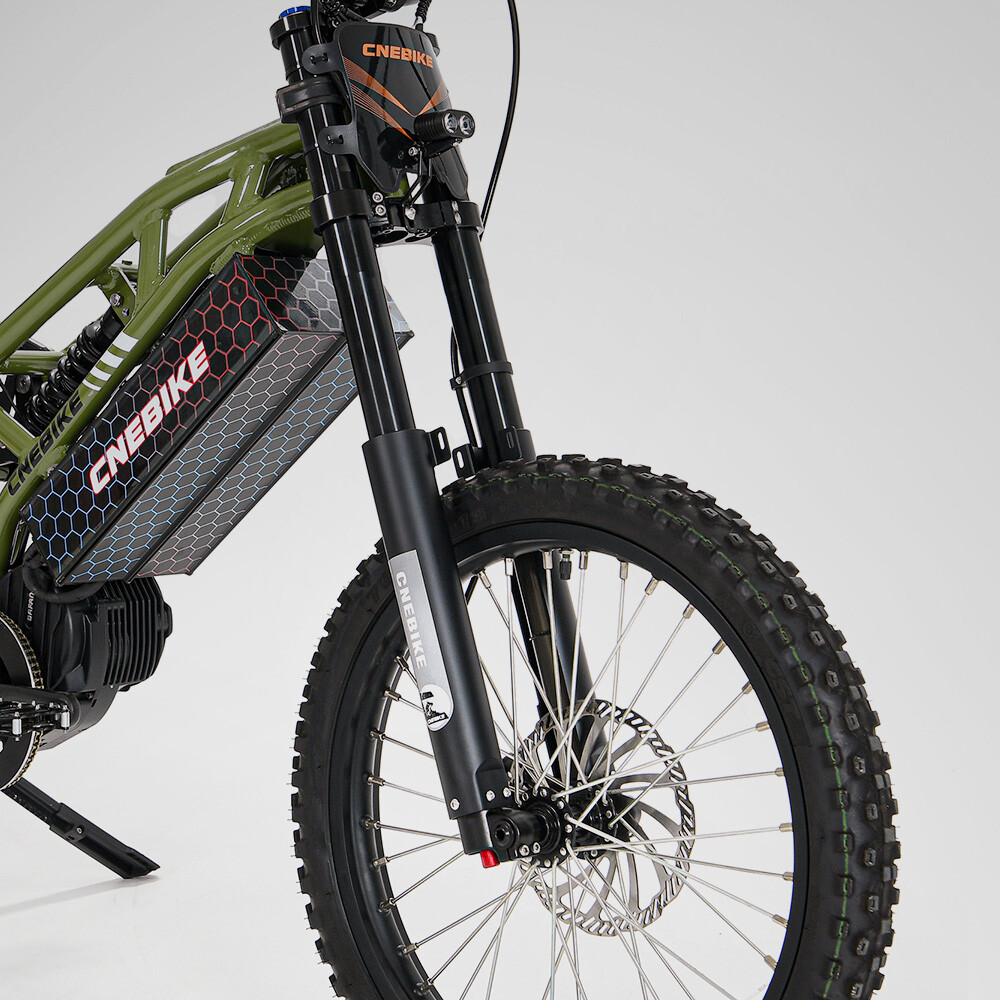

Front Fork
The motorcycle is equipped with the KKE dual shoulder inverted front fork suspension system. These high-end front forks use AL 7075 tubing, sturdy rubber seals, a 20mm through-axle design, and large plastic fork protectors.
These front forks are specifically designed for heavy-duty electric bicycles, providing 180mm travel through a coil and air hydraulic spring system. They offer a perfect all-around riding experience on your CNM630.

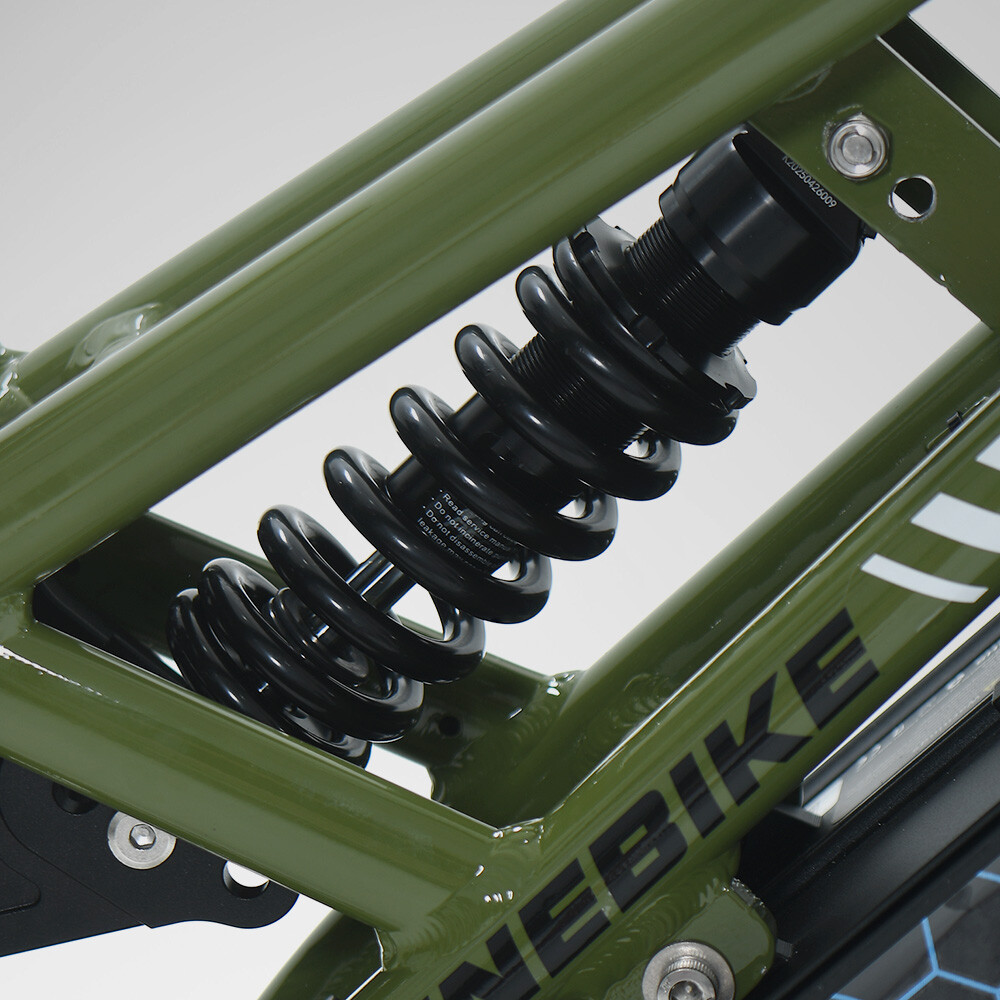

Rear Shock
The electric motorcycle is equipped with a central rear shock system. The durable KKE MK-AR shock absorber features a nitrogen-charged oil damping system with an internal floating piston, a hard chrome-plated steel 12mm damping rod, and integrated temperature compensation. The shock absorber has a spring rate of 750 pounds, providing up to 45mm of travel.
We have adjusted this suspension system to give the e motorcycle perfect handling performance.

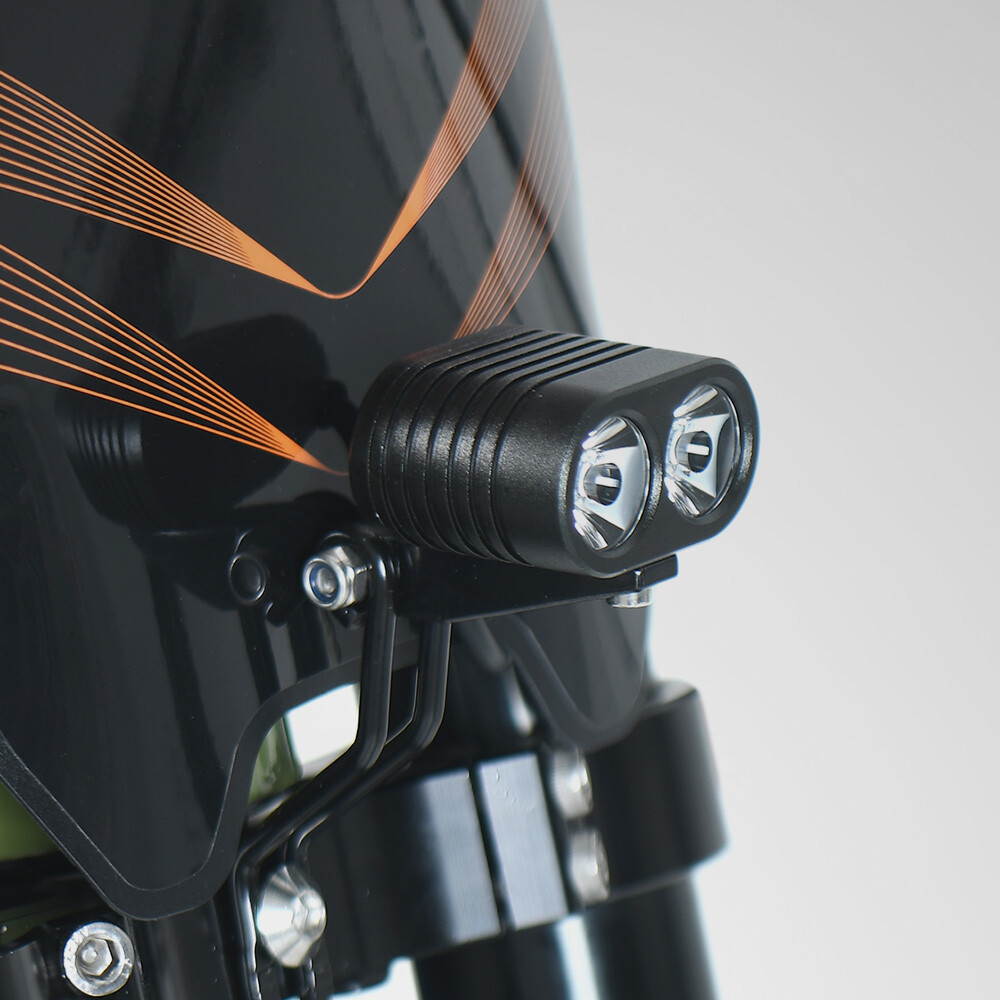

Front Light
The electric motorcycle comes with an LED wide-voltage front light. The 100LM variable voltage white light provides a broad and deep view even in the darkest environments. It is durable and waterproof.

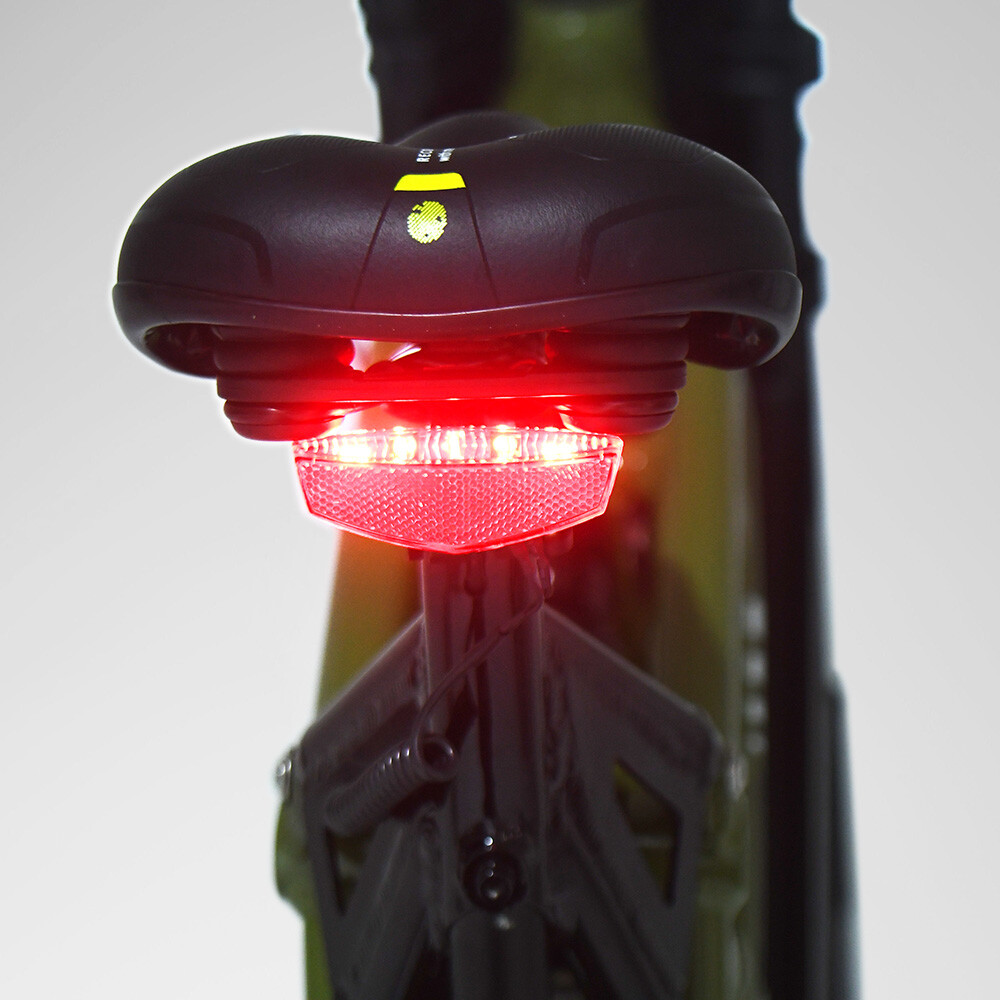

Rear Light
The rear equipped with LED light strips, it features brake lights and night lights functions.

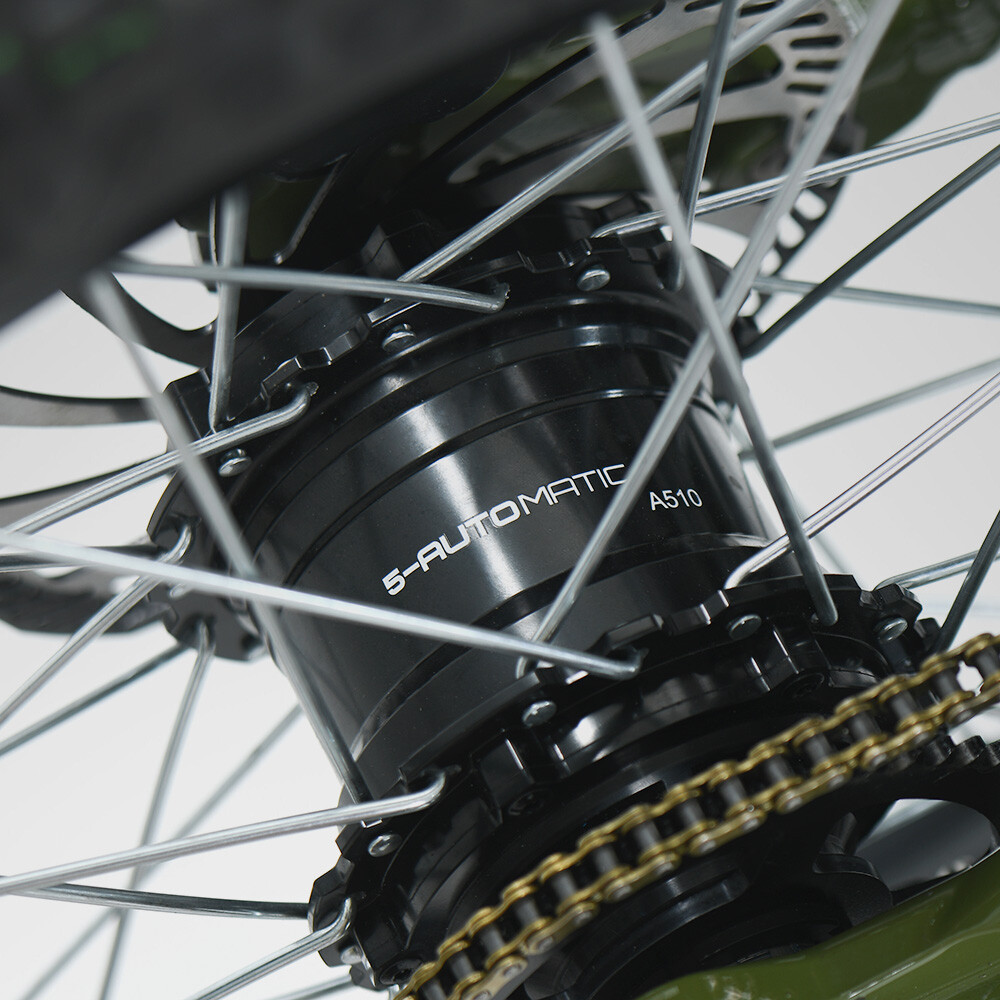

inner hub
The rear wheel is installed with the BAFANG A510 internal 5-speed hub, providing smooth and maintenance-free automatic shifting.

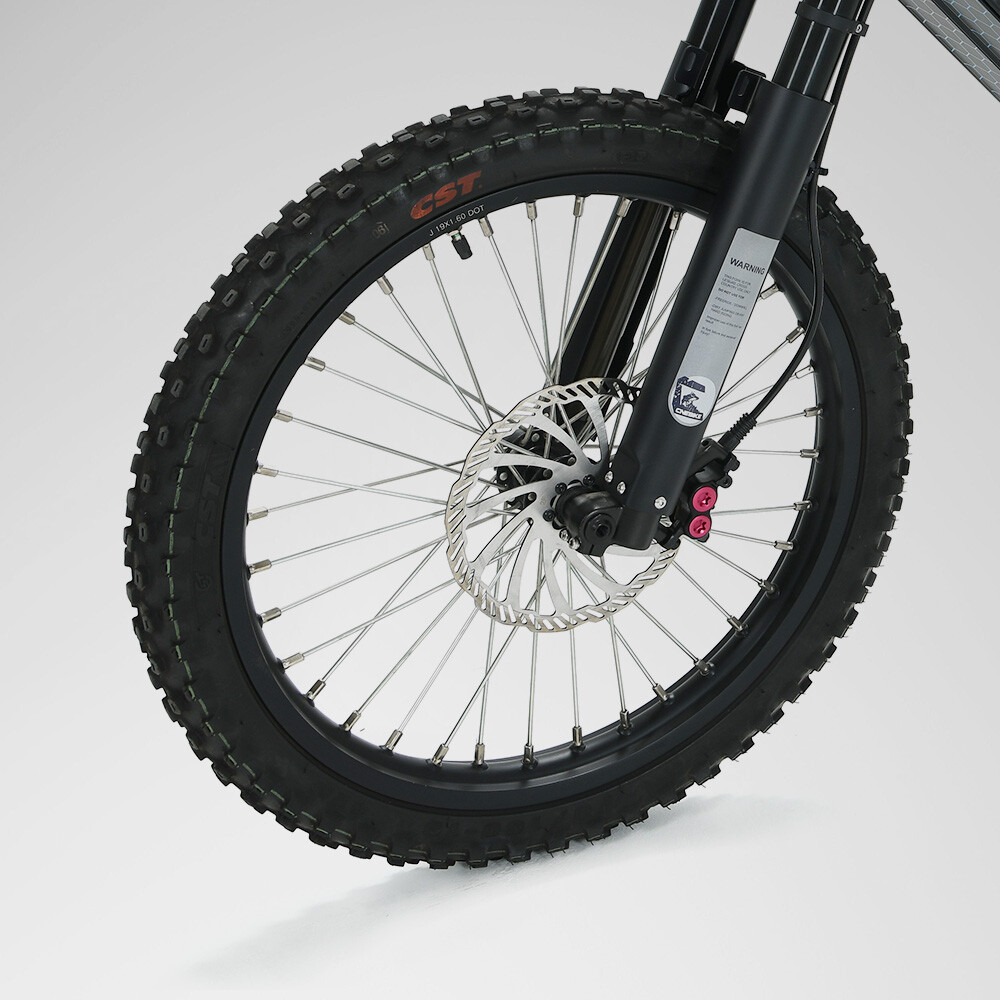

Tires
The electric motorycycle is equipped with ZHENGXIN specialized off-road performance tires, with specifications of 70/100-19 for the front and 80/100-19 for the rear, combining the best performance from various fields. These tires offer increased stability and impact resistance, along with a larger contact patch that enhances traction on soft terrains, providing a more comfortable riding experience.
The block-patterned tire surface provides better grip on all paths, from smooth asphalt roads to soft gravel. With a durable tire body and puncture-resistant layer design, they protect against wear and damage from sharp debris, preventing punctures and maintaining smooth rolling.

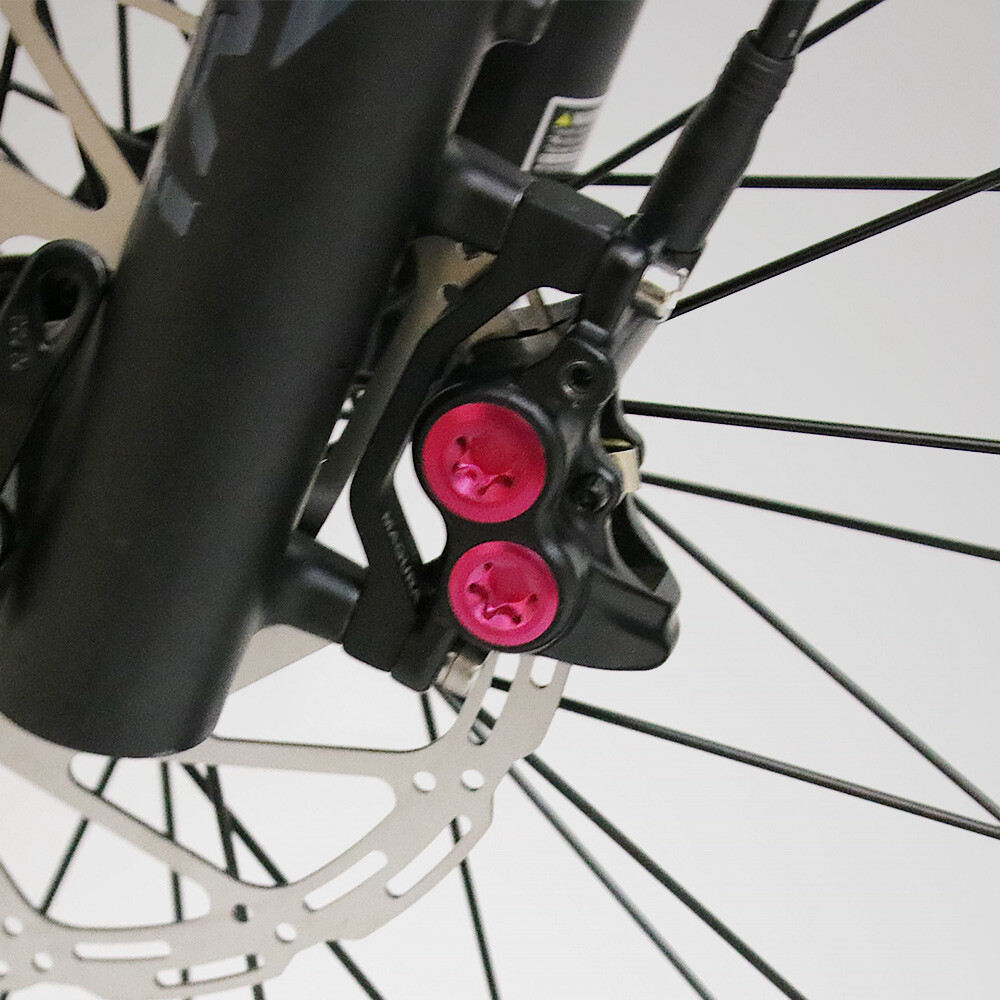

brake system
The electric motorcycle comes with hydraulic disc brakes , providing robust braking performance. brake disc 203mm brake disc is used on the front wheel and rear wheel, offering perfect balance and strong braking power where needed.
The forged aluminum brake caliper body, rigid hose casing, and non-corrosive mineral oil help prevent brake pad overheating, ensuring reliable braking performance when you need it most.
Equipped with a built-in power cut-off sensor, the raised modular brake lever not only cuts off the motor power but also activates a high-visibility brake light to alert nearby drivers.

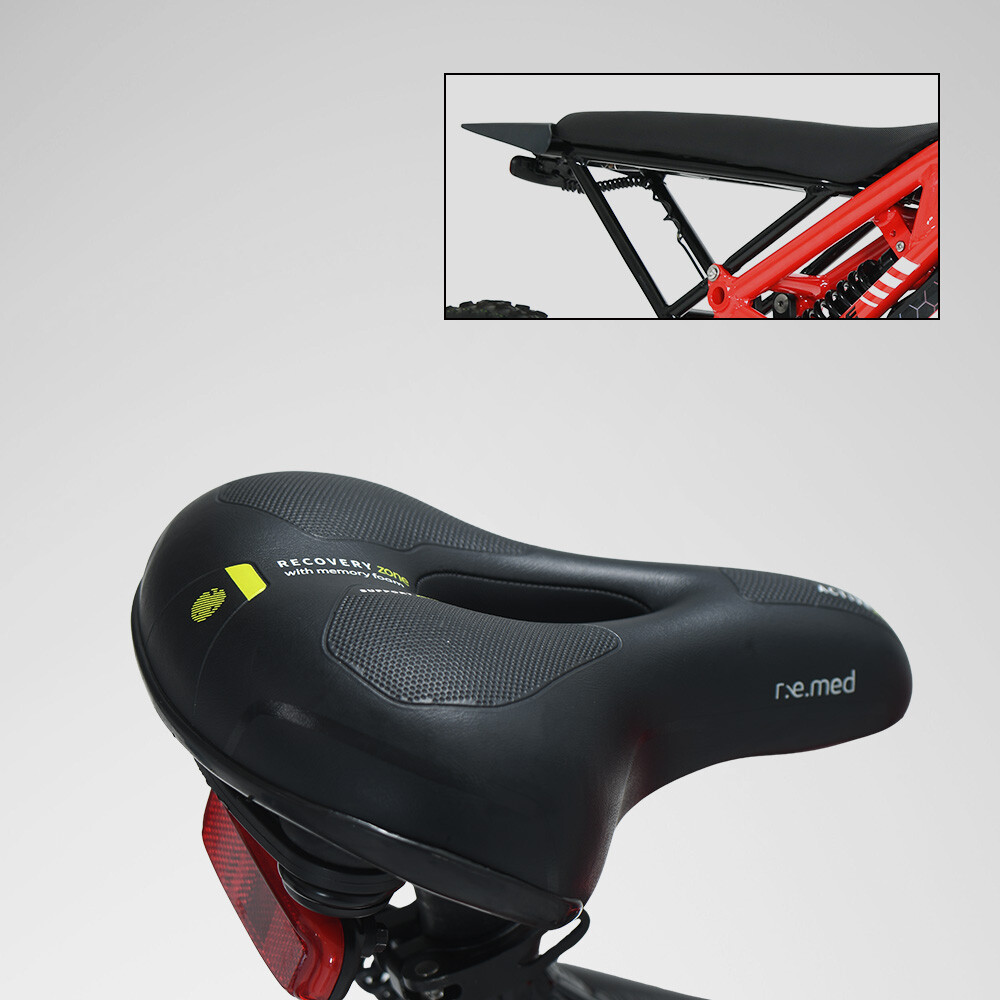

Seat
Featuring a durable waterproof casing and meticulously designed with ergonomics in mind, it allows riders to adjust the position of the seat according to personal preferences, enabling customized comfort and providing a luxurious riding experience.
*The seat height can be adjusted according to the needs of different riders.
*Riders can freely switch between bicycle seats and motorcycle seats.
Rear Rack
Improve your long-distance riding experience with the practical and convenient aluminum alloy luggage rack. Easily install by durable aluminum luggage rack with simple screws.
Optional Accessories
Get in touch!
Whether you are an individual or a dealer, please do not hesitate to contact us if you need information or support of any kind.

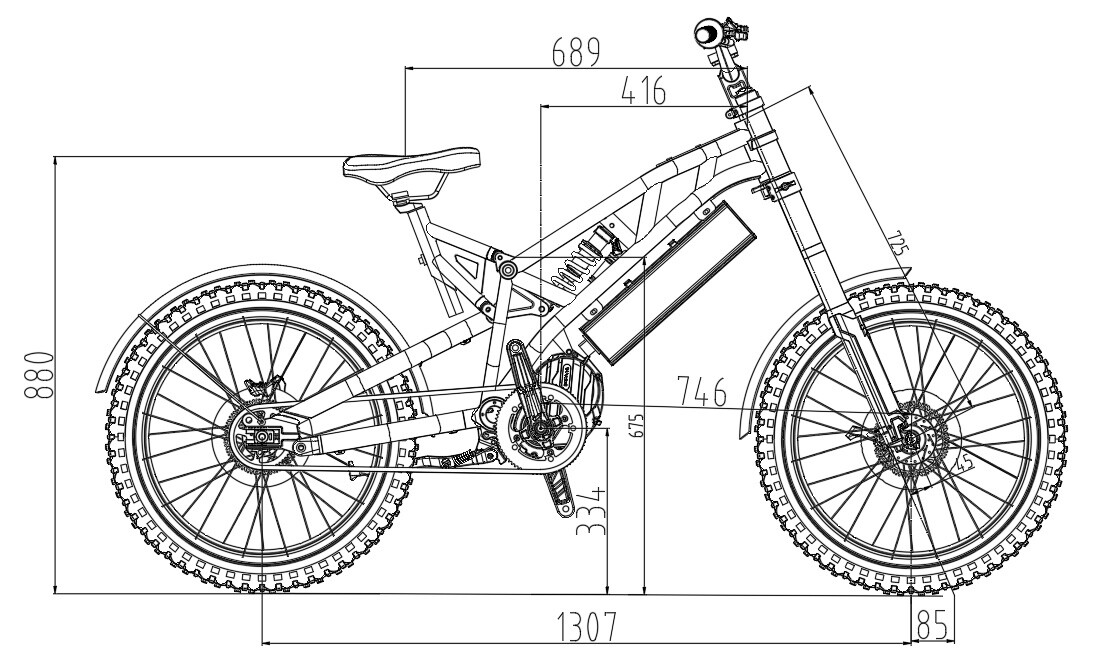

Parameter
