Description
280nm of torque.

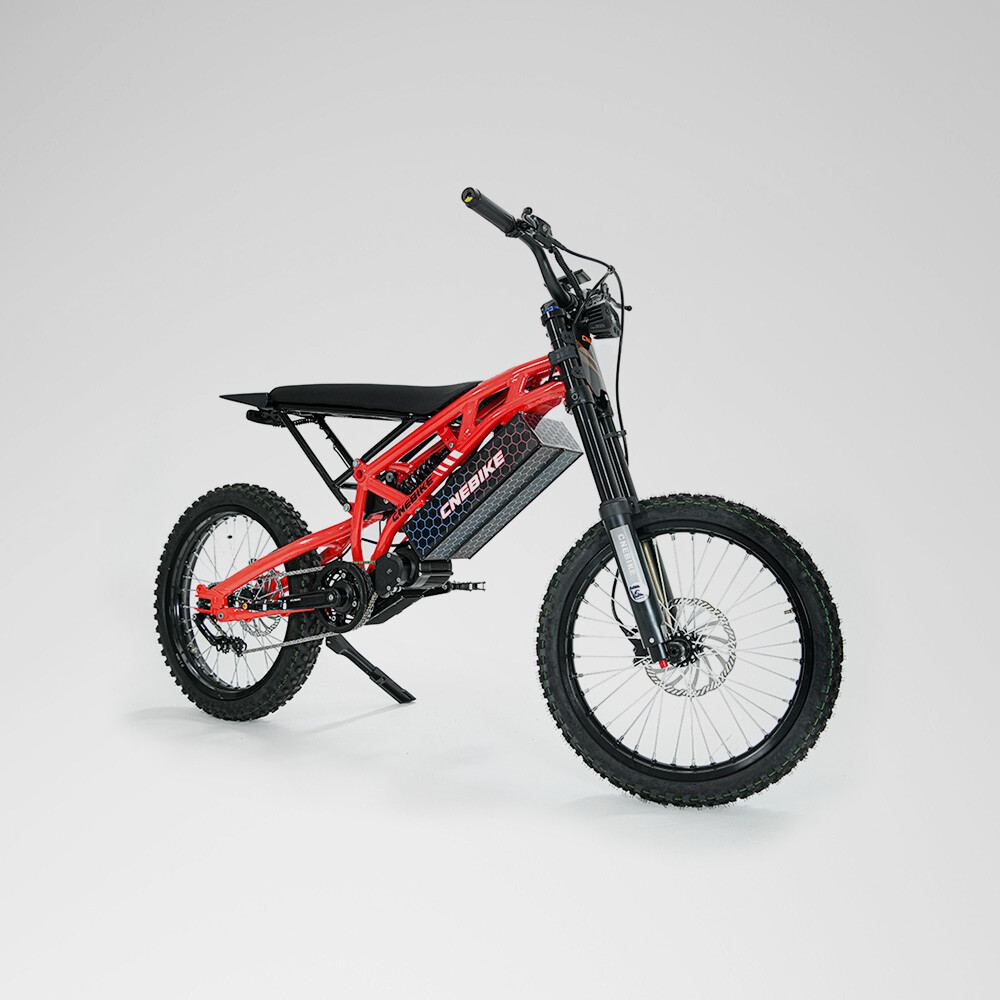

M5 Equipped with the fourth-generation CYC X1 Pro Gen 4 middrive motor. The Beast is in a league of its own.
1 Nm is equivalent to 0.738 lb/ft. A small car typically has around 100 lb/ft of torque. The Beast has 280nm of torque equivalent to 207 lb/ft of torque top end speed of 37 mph.
Colour
Green
Black
Red

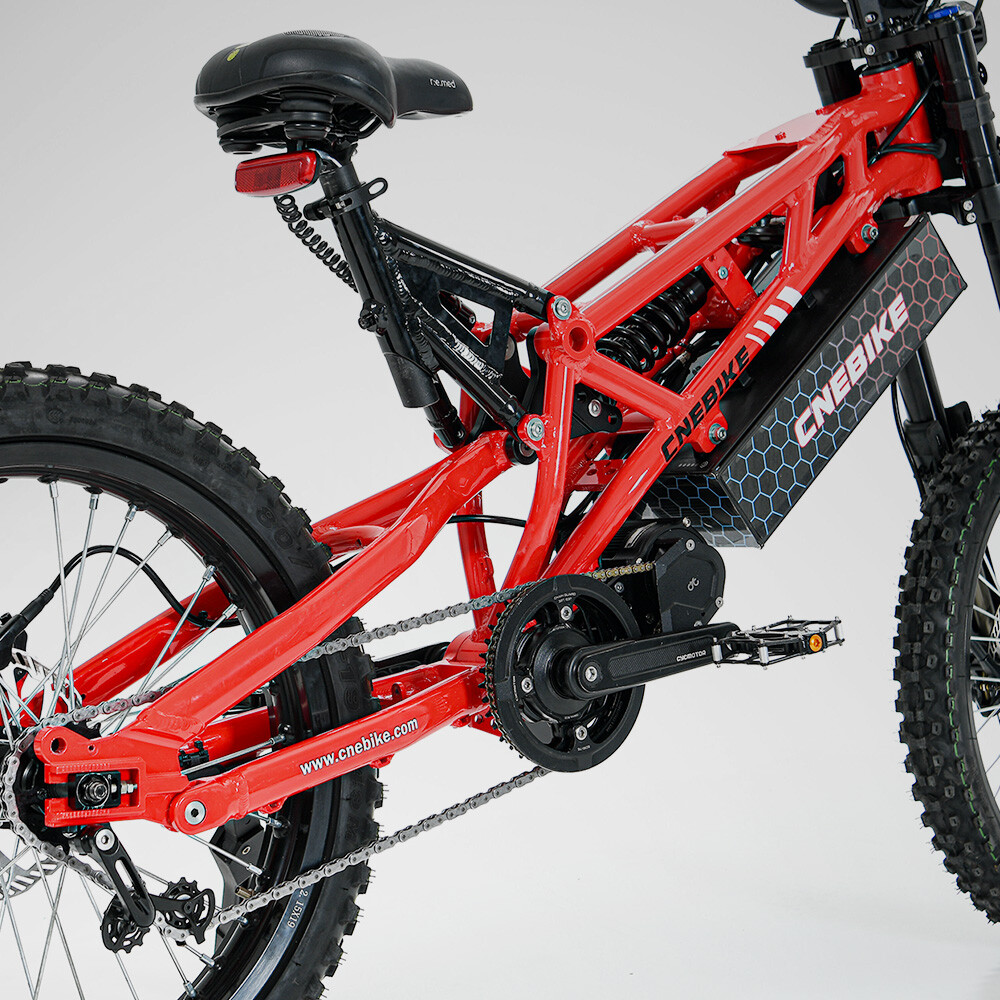

Frame - Lightweight
The M5 electric motorcycle frame is patented, utilizing 6061 T6 aluminum alloy to maximize the strength-to-weight ratio.
The M5 employs a proven, proprietary process to create the frame structure, ensuring the highest quality and durability while providing optimal central stability.

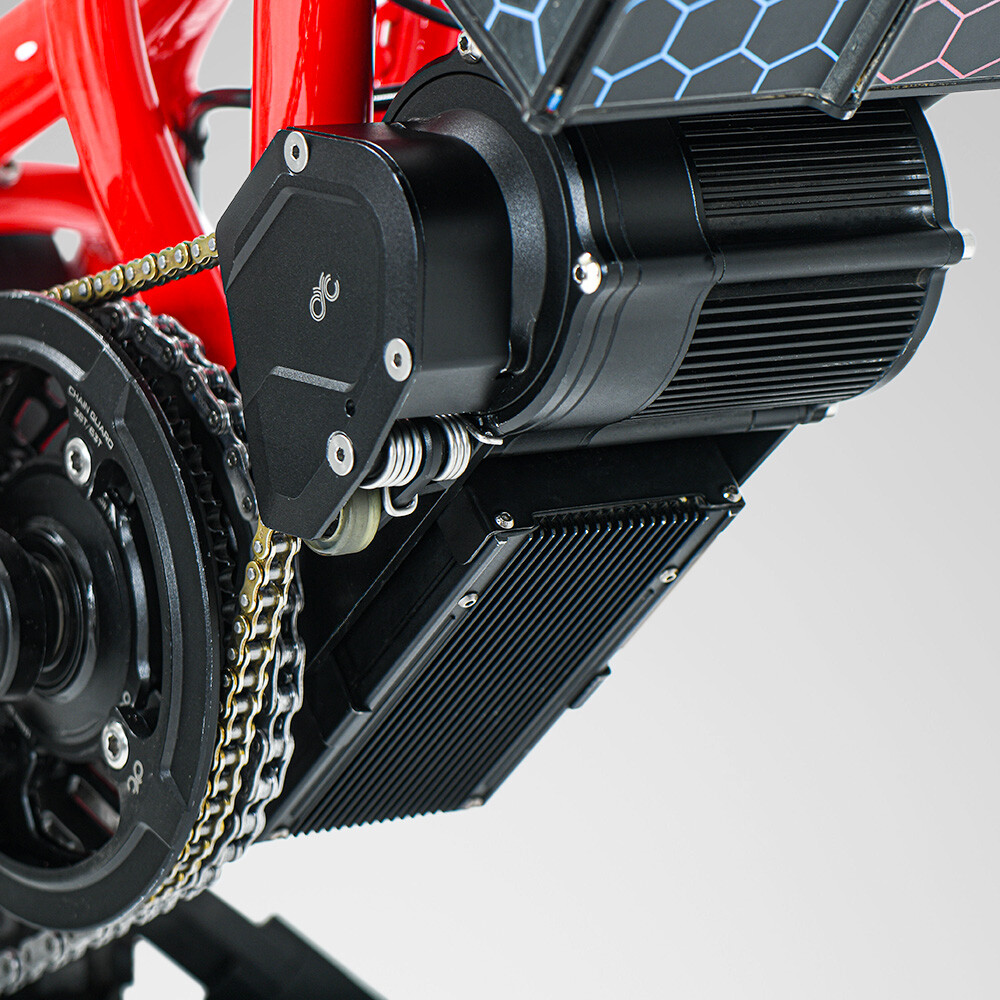

Motor
6500W
Peak Power
280 N.m
Max. Torque
36-72V
Rated Voltage
>300rpm
Maximum Speed
5.6Kg
Total Weight
The core of the electric motorcycle is the fourth-generation CYC motor, providing an unparalleled riding experience. This motor combines impressive power and big torque, embodying the expected performance of the bicycle.
With its efficient permanent magnet synchronous motor (BLDC) generating 280 N.m of torque, the motor is equipped with a redesigned planetary reduction gearbox to reduce noise levels, provide instant torque, and stable power. This powerful motor, through its low center of gravity design, enhances the overall riding comfort experience."

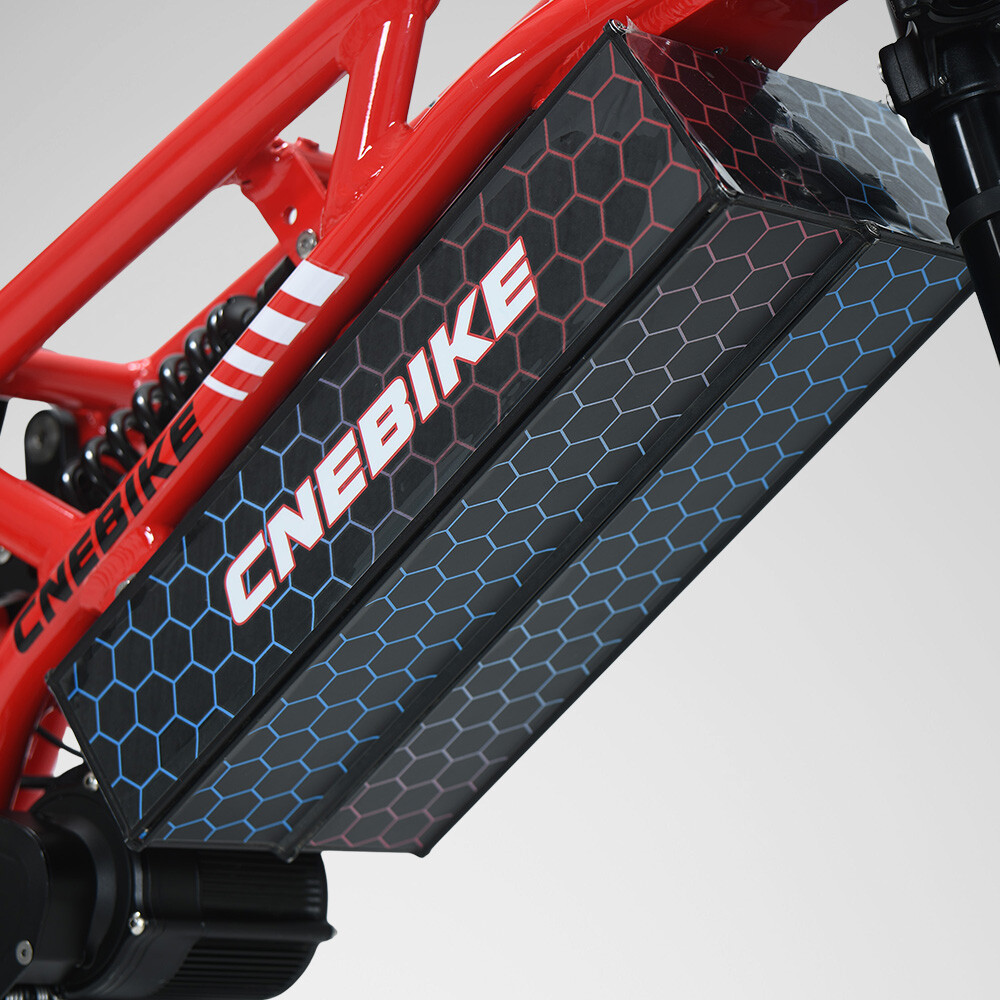

Battery
The casing of battery is manufactured from 4mm thick high-quality aluminum alloy material. besides, it uses a full potting process inside for better and more even heat dissipation, which can prevent spontaneous combustion, is waterproof, and shockproof. The waterproof rating reaches IP67. Equipped with a dual safety protection battery management system (BMS) and a fuse module to prevent overcharging, over-discharging, overloading, and short circuits. Furthermore, it uses the best Samsung 50GB high-quality 21700 battery cells. The 72V 30Ah battery pack has a total capacity of 2160Wh and can provide a range of up to 175 miles in pedal-assist mode and over 70 miles in throttle-only mode. It fully charges in 4 hours, if take a well-maintained battery can last up to 5 years.
The battery comes with a one-year warranty.

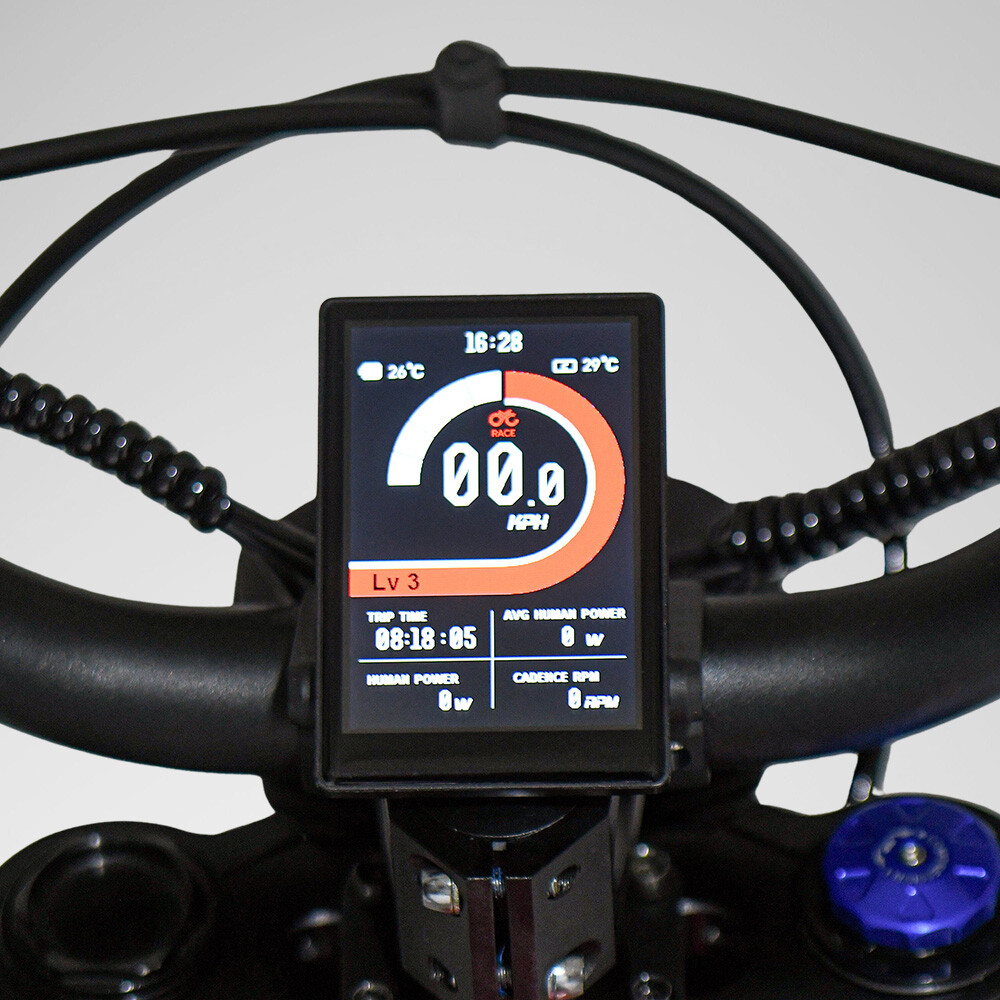

Display
Smart LCD display allows you to have full control this M1.5 electric bicycle . The background color of LCD display provides highly visible date whatever day or night . The display has a 3.5-inch color TFT screen with a clock function.
Designed for all weather conditions, with IP65 waterproof performance, and equipped with a micro USB port. Durable display material is ABS/PC composite material, and it is equipped with an ultra-tough tempered glass screen.

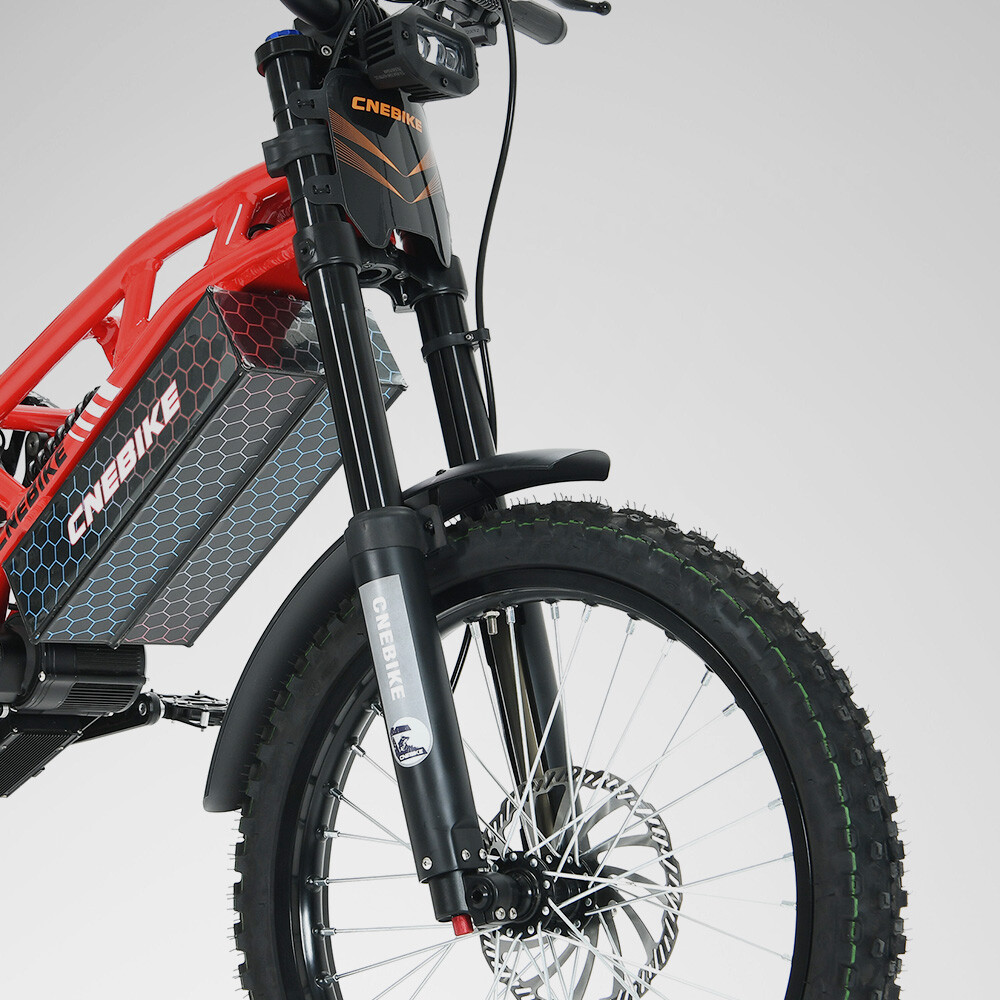

Front Fork
The motorcycle is equipped with the KKE dual shoulder inverted front fork suspension system. These high-end front forks use AL 7075 tubing, sturdy rubber seals, a 20mm through-axle design, and large plastic fork protectors.
These front forks are specifically designed for heavy-duty electric bicycles, providing 180mm travel through a coil and air hydraulic spring system. They offer a perfect all-around riding experience on your M5.

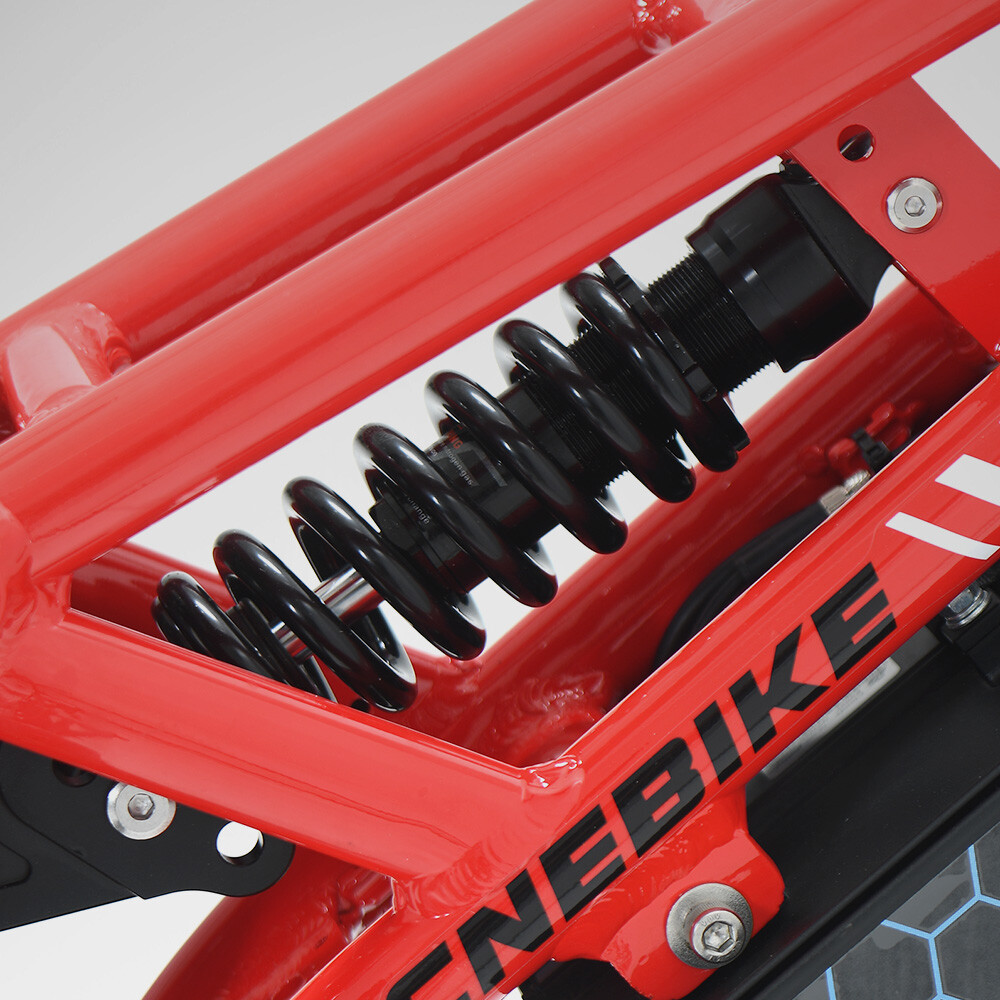

Rear Shock
The electric motorcycle is equipped with a center rear suspension system. The durable KKE MK-AR shock absorber features a nitrogen-charged oil damping with internal floating piston, a hard chrome-plated steel 12mm damping rod, and integrated temperature compensation. The shock absorber's spring force value is 550 pounds, providing up to 45mm of travel.
We have fine-tuned this suspension system to give the vehicle perfect handling performance.

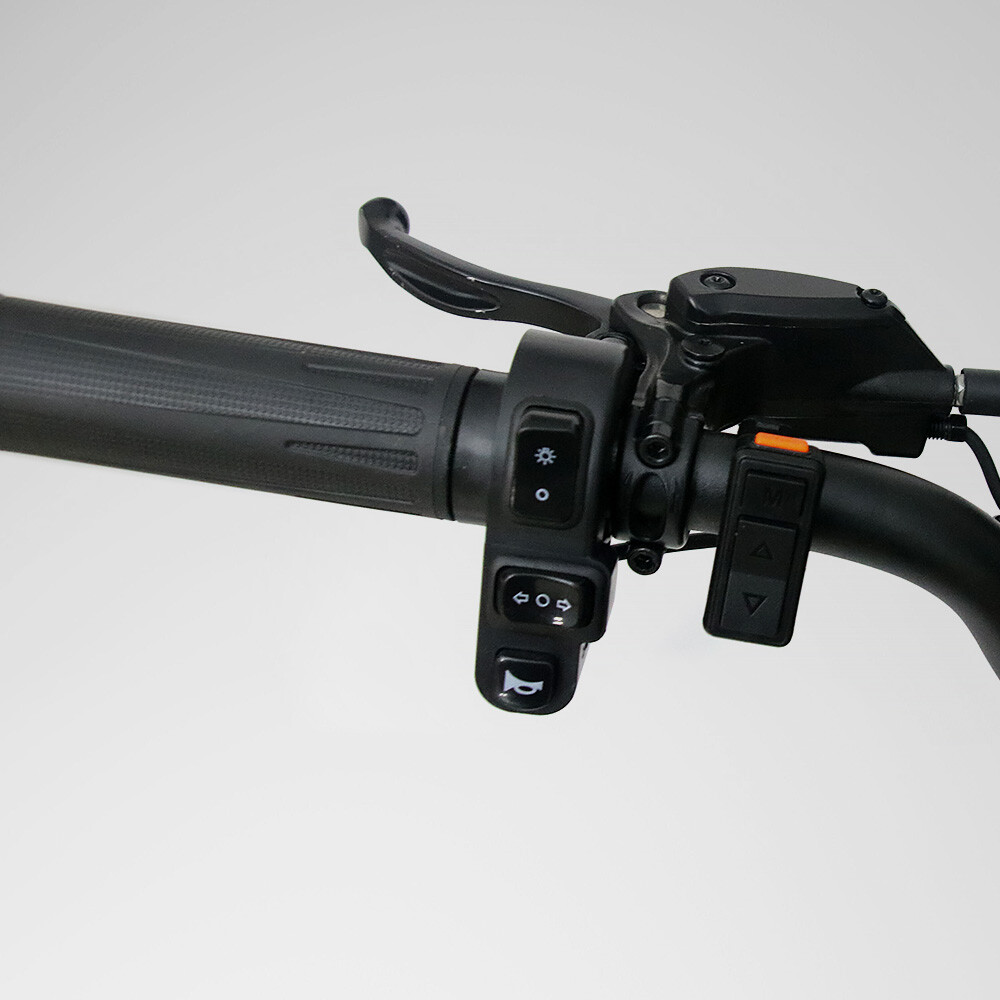

Combination Switch
The M5 is equipped with turn signals, brake lights, night lights, front lights, and a horn, with the activation and deactivation of these functions managed through a combination switch.

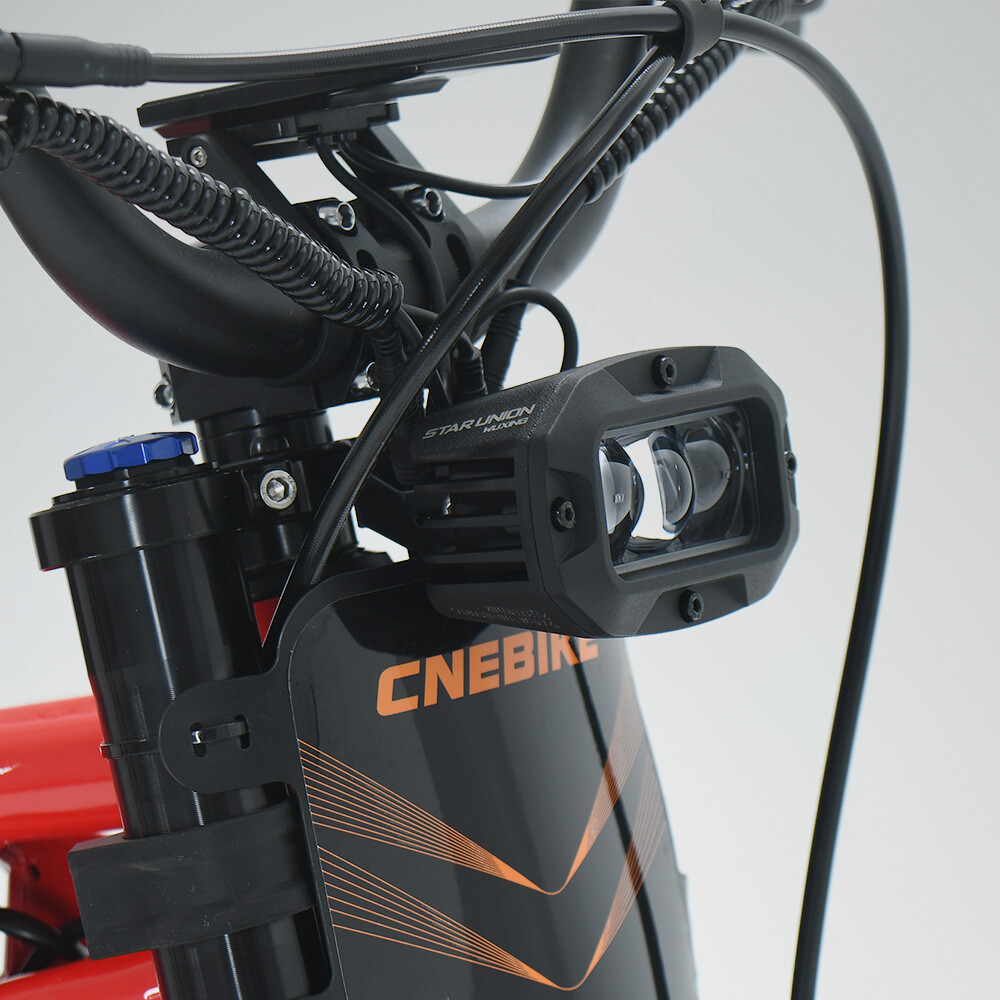

Front Light
The electric motorcycle comes with a fully integrated LED front light. These 3000LM variable voltage white lights provide a wide and deep field of vision even in the darkest environments. Their durable waterproof housing is protected by a highly thermally conductive alloy cover to ensure ample heat dissipation.

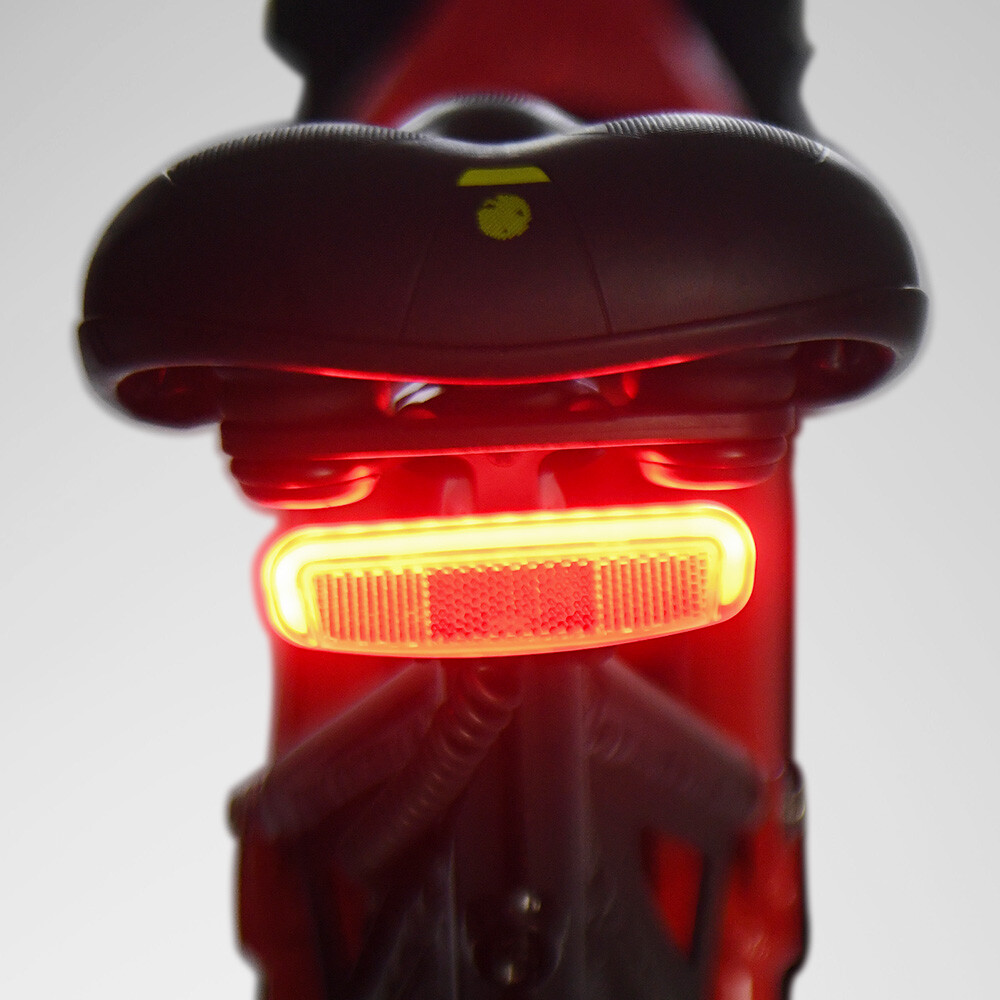

Rear Light
The M5 tail light is composed of LED light strips, equipped with brake light, night light, and turn signal functions.

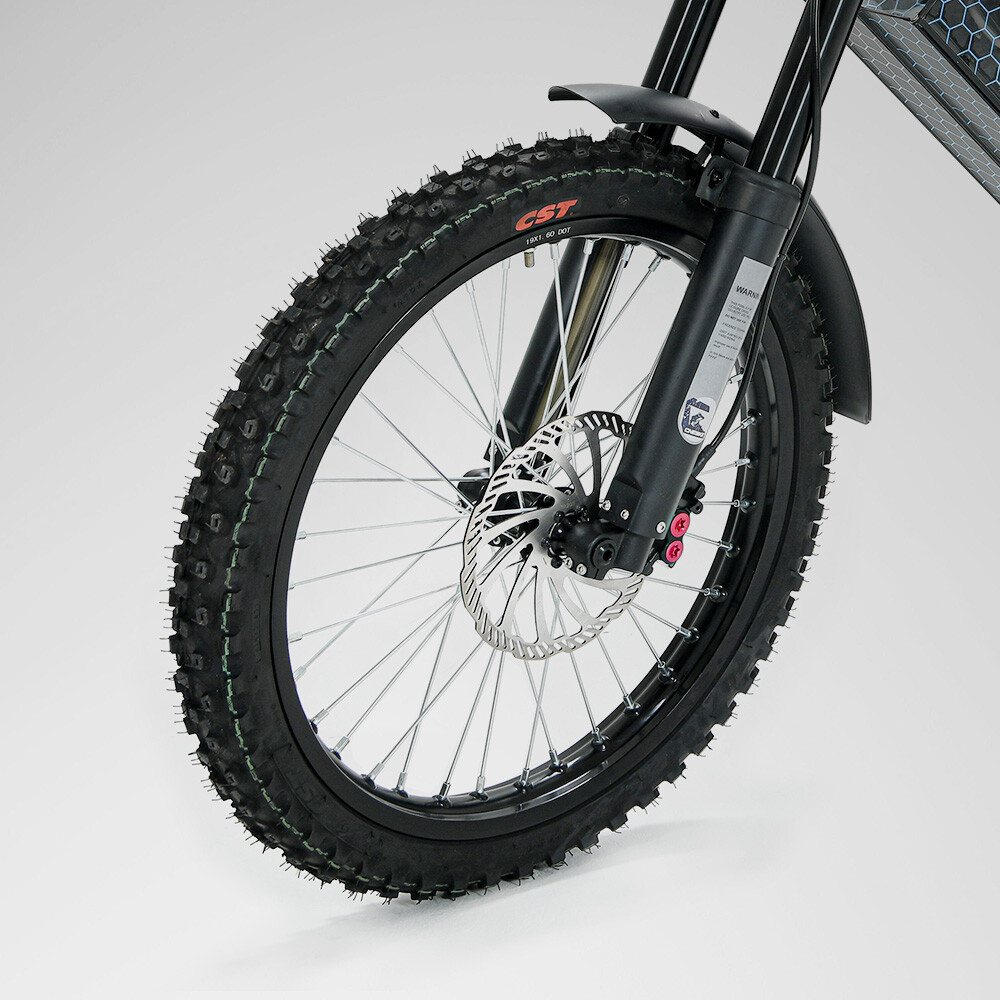

Tires
The electric motorycycle is equipped with ZHENGXIN specialized off-road performance tires, with specifications of 70/100-19 for the front and 80/100-19 for the rear, combining the best performance from various fields. These tires offer increased stability and impact resistance, along with a larger contact patch that enhances traction on soft terrains, providing a more comfortable riding experience.
The block-patterned tire surface provides better grip on all paths, from smooth asphalt roads to soft gravel. With a durable tire body and puncture-resistant layer design, they protect against wear and damage from sharp debris, preventing punctures and maintaining smooth rolling.
brake system
The electric motorcycle comes with hydraulic disc brakes , providing robust braking performance. brake disc 203mm brake disc is used on the front wheel and rear wheel, offering perfect balance and strong braking power where needed.
The forged aluminum brake caliper body, rigid hose casing, and non-corrosive mineral oil help prevent brake pad overheating, ensuring reliable braking performance when you need it most.
Equipped with a built-in power cut-off sensor, the raised modular brake lever not only cuts off the motor power but also activates a high-visibility brake light to alert nearby drivers.
Seat
Featuring a durable waterproof casing and meticulously designed with ergonomics in mind, it allows riders to adjust the position of the seat according to personal preferences, enabling customized comfort and providing a luxurious riding experience.
*The seat height can be adjusted according to the needs of different riders.
*Riders can freely switch between bicycle seats and motorcycle seats.

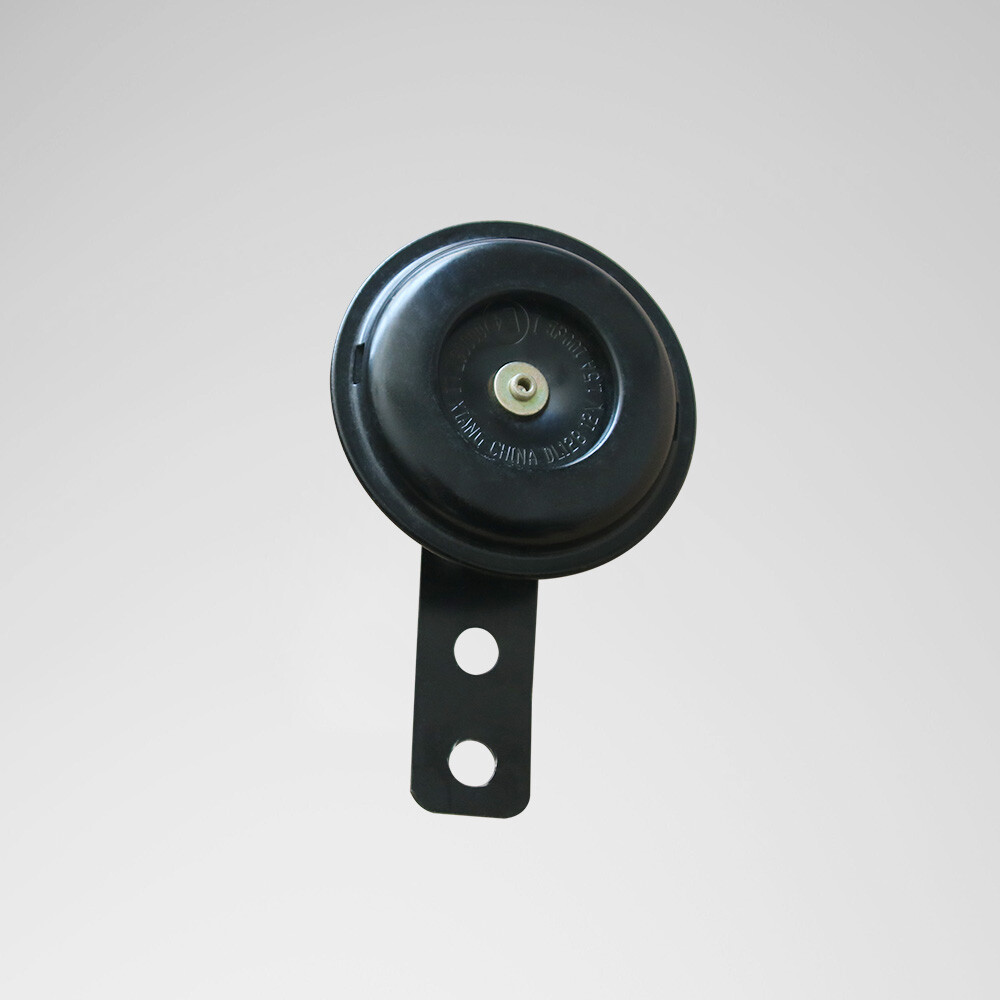

Horn
12V1.5A 100dB, The horn sound is crisp, alerting nearby drivers and pedestrians.

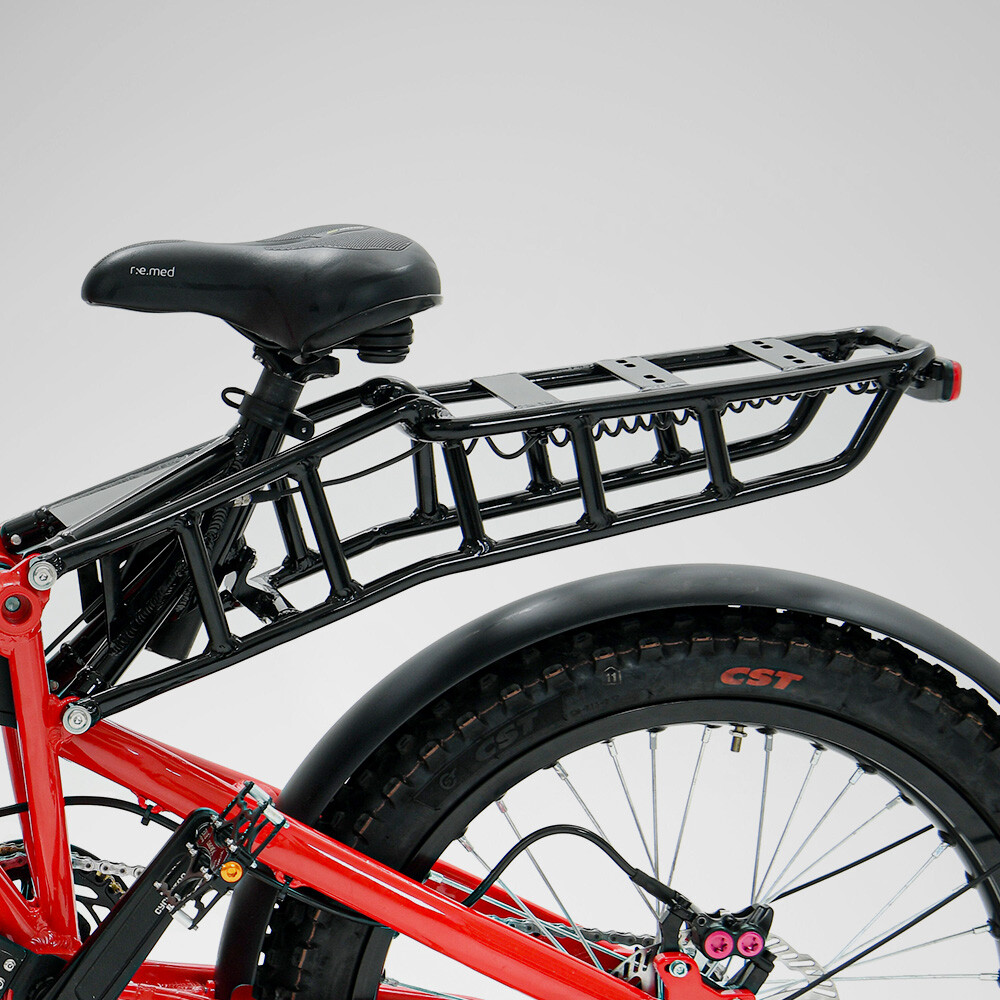

Rear Rack
Improve your long-distance riding experience with the practical and convenient aluminum alloy luggage rack. Easily install by durable aluminum luggage rack with simple screws.

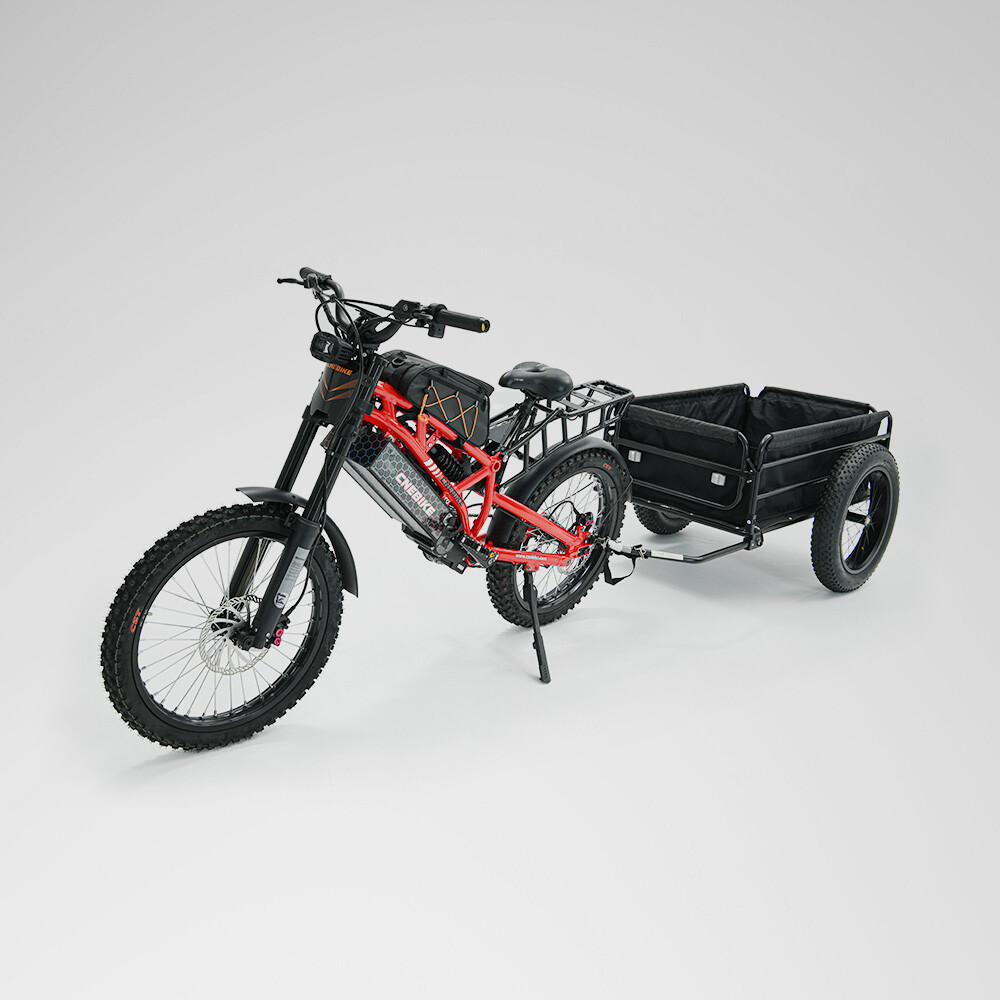

Optional Accessories
Get in touch!
Whether you are an individual or a dealer, please do not hesitate to contact us if you need information or support of any kind.
Parameter
